Overview Vespa PK

The 80s had begun and the Vespa PX was to have a little sister. In 1982, Vespa therefore expanded its product range with the Vespa PK, which was also to replace the V50 model series. However, many fans of the previous models found it difficult to get used to the new frame shape, as its angular design differed greatly from the previous smallframe models.
The PK models not only grew in size, but also received a number of technical innovations over the course of their model series. The new alignment of the bumper edges also meant that the weld seams of the frame halves and Mudguard disappeared from view.

Vespa PK model history

The Vespa PK series

From 1982 to 1985, this model was available as a 50 cc, 80 cc, 100 cc and 125 cc. The era of the Variomatic also began with the PKs, in the form of numerous models such as Speedmatic, Plurimatic and Automatic.
Initially, the Forks of the V50 were still fitted, although these continued to be fitted as standard on later models. There was a so-called economy model, which was delivered without indicators, glove compartment, Speedometer, Control Light and Brake Light.
Even though the successor model was then equipped with the aforementioned components, the 50 cc versions in Italy, for example, continued to do without Speedometer and Brake Light.
The main feature of the first PK series is the small Speedometer without Fuel Gauge and the lockable side flaps that can be operated from the outside. The Vespa 125 ETS was added as a sporty special model in 1984. We will list its special features separately.
Another special model was introduced in 1985 with the PK Lusso. Numerous components made their debut here, which then became standard on the XL. There were also separate models or different designations for various countries, for example the "SS".
In 1986, the PK was finally replaced by its successor, the PK XL.

The Vespa PK XL series

Colloquially known as the "XL1", it was first introduced in 1986 and featured numerous changes, including a revised frame.
The larger Glovebox allowed the Horn to be positioned behind it, and the Horn Cover was given a slimmer design. The Speedometer was equipped with a Fuel Gauge and integrated Control Lights as standard. Locking of the Side Panel Door was moved under the Seat, giving the scooter a much cleaner look. The Seat was also given a new design.
The typical Floor Runners, as previously known, were replaced by Floor Mats or "Floorboards". The XL versions were also quickly followed by various special models: starting with the XLS, which scored points with its higher performance, through to the sporty PK "Rush" model.
A new regulation in the Italian traffic regulations at the time allowed the previous power limit of 1.5 hp to be exceeded as long as the speed did not exceed 40 km/h. This meant that the 1.5 hp limit could no longer be exceeded. As the 1.5 hp limit was no longer applicable, the rated power of the PK "Rush" was increased to 2.3 hp. However, in order to comply with the permitted top speed, the decision was made in favour of a 3-speed gearbox.
The leap to the upcoming XL2 is clearly visible in the Vespa PK50 N (Nuovo). A special version of the "N" is the legendary "Roberta", which was decorated with flying butterflies. This was a collaboration between PIAGGIO and a manufacturer of women's underwear. However, there is contradictory information about this: Official dealer letters confirm this version, while pictures often show models based on normal XL versions that do not correspond to the Nuovo line.
Visually, this model already features typical applications such as the attached rear with recessed Rear Light, as well as the mono Seat that merges into the rear, Hub Caps and the new plastic mudguard. The Handlebar itself is still the typical XL1 handlebar with round Speedometer. Although the glove compartment remains unchanged, it has been given a Tray, as known from the Vespa T5.
The last models of the PK XL rolled off the production line between 1989 and 1990, depending on the engine capacity. After that, the era of the XL2 began.

The Vespa PK XL 2 series

Even though the series partially merged due to numerous special models, the actual market launch of the so-called XL2 was in 1990. A typical feature is the completely redesigned Handlebar with its completely redesigned large Speedometer. While all previous models had a moulded Handlebar Lower Part, the XL2 introduced tubular handlebars with a two-part Cover for the first time. The gearstick actuation was also new: instead of the usual two shift cables, a single rigid shift wire was now used, which enabled a more direct gear change and lower-maintenance mechanics.
Locking of the glove compartment was combined with the Handlebar / Ignition Lock, which required a new type of lock carrier. The operation of the cold start aid moved from the frame step-through to the Handlebar, making it much easier to reach.
The Clutch was also revised as part of these changes. The familiar clutch with a central spring was replaced by a version with six smaller Springs. A ball-bearing Pressure Plate and a toothed pressure plate with Release Lever rounded off the system in its new form.
Of course, there were also various special models for the XL2; some changes had already been seen in previous special versions. Probably the best-known special model is the HP4 (High Power 4 marche), which achieved higher performance with a revised Engine.
There was also another version with a 3-speed gearbox, which was marketed as the PK50 HP.

We have probably overlooked some things here or failed to mention certain special models. As there is a lot of overlapping information about the PK models or even manufacturer information is sometimes contradictory, it is often difficult to make a clear classification. When even official advertising brochures give different information than the PIAGGIO Garage Hand Books, it becomes complicated to establish clear facts. We therefore ask for your indulgence if our information differs from your experience. We will be happy to correct or supplement our databases with your help.
The XL2 was probably built until 1996 - as far as can be researched based on current knowledge.

Used Vespa PK market situation

Anyone looking for a Vespa PK today will find a wide range on the second-hand market in various price categories and conditions. Due to the high number of units and the long production time, the selection is diverse. Original condition, good maintenance and a traceable history can increase the value. Rare versions, such as the numerous special models or early variants without Indicators, are sometimes traded at higher prices and are particularly popular with collectors.
In addition, the technology of the PK models is considered robust and comparatively easy to maintain, which also makes them interesting for restoration projects. Unfortunately, not all spare parts are available anymore, which means that it is sometimes necessary to resort to reproductions or used parts. Where do you look for this vehicle?

• At your trusted Vespa dealer

• Classified adverts in the local newspaper

• Markets and trade fairs such as Mostra Scambio in Italy

• Online marketplaces such as www.mobile.de, www.autoscout24.de etc.

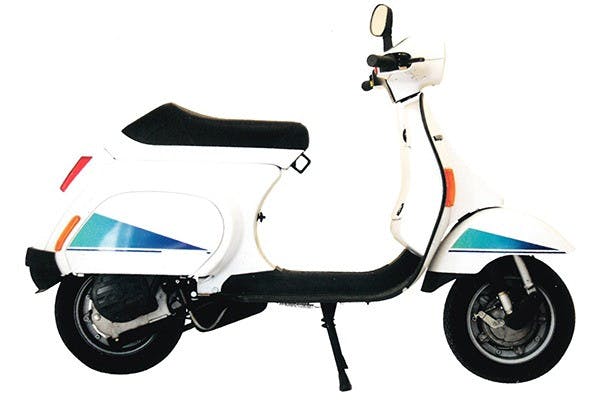

The special features of the Vespa 50 PK FL

The Vespa 50 PK FL was presented at the Milan Motor Show in1991 at a sales price of around 3,105,000 lire (approx. 3,170 euros today). The chassis was similar to that of the predecessor model. The upper part of the Handlebar was given a new design, which created a more appealing line. The middle part of the handlebars, which housed the instrument panel, was in dark grey. The instruments were arranged in a circle, with the Speedometer, Odometer and Fuel Gauge positioned centrally. The top box on the lower side featured the typical "V" for this Model in a blue field (for both the Switch and automatic versions). To identify the automatic model, the Side Parts (Mudguard and doors) featured two triangular, shaded adhesive strips, and the Vespa Badge was complemented by a large, metallic "A" (for automatic). The Floor Mat consisted of three parts, one in the centre and one on each side. Both variants, FL2 and FL Speedmatic, dispensed with the side crank for the starting process. The Starter was operated exclusively via a Press Button.
The Engine was the same as the previous Models, equipped with a three-speed gearbox. The Speedmatic version offered the same features as the previous versions with automatic transmission.

The colours of the Vespa 50 PK FL:

Colour	Colour Name	Max Meyer Code	Colour info
	Bianco	P 9/3
	Nero	P 9/11
	Rosso Corsa	1.298.5806
	Antracite Metallizzato	PM 2/4 8004M
	Verde Micalizzato	PMC 9/6
	Blu Metallizzato	PM 5/3
	Azzurro	P 7/2
	Alluminio	1.268.0983	various Frame Parts
	Grigio	8012M	Rust protection/primer
