Vespa GTS/GTS Super/GTV/GT60 250-310
VESPA
GTS i.e. / Touring 4V HPE Euro5 300 ccm 4T LC '23-'24 ZAPMD3103, ZAPMD3104

VESPA GTS i.e. / Touring 4V HPE Euro5 300 ccm 4T LC '23- ZAPMD3103, ZAPMD3104

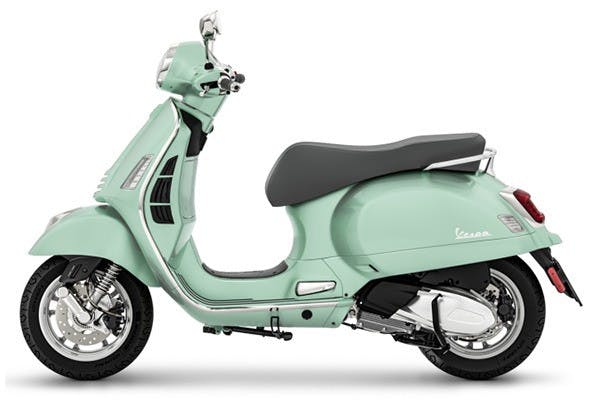

Photo from VESPA GTS i.e. / Touring 4V HPE Euro5 300 ccm 4T LC '23- ZAPMD3103, ZAPMD3104 | MODERN VESPA

Overview Vespa GTS 300 Touring

The first Vespa GTS 300 came onto the market in 2008 and was a success right from the start. It was a version of the Vespa Granturismo with a 300 cc Engine, which offered more power than the original 125 and 200 cc versions. This model series represented an important milestone in the history of the Vespa, as it marked the transition from traditional two-stroke engines to modern four-stroke engines. As the top model in the range, the GTS 300 had a displacement of 278 cc and 21 hp, characterised by darkened Headlight Units, analogue instruments and a Seat with white trim. The Super Sport was characterised by a matt paint finish, black rims, red shock absorber springs and a sports seat.

Model history of the Vespa GTS 300 Touring

After almost five years without any significant updates, Piaggio decided to introduce an update for the model series in 2023 . This resulted in another milestone: the Vespa GTS 300 HPE version. This most powerful Vespa to date has a 300 cc displacement, 24 hp and reaches a top speed of 120 km/h with 26 Nm. But how did Piaggio achieve this progress? Although the design was largely the same as the previous model, with only a few changes such as a slightly modified Horn Cover, new Cylinder Heads with improved Camshafts were installed in the Model. These not only ensure quieter operation, but also produce less exhaust fumes and work more efficiently. This improved drive was referred to as the "High Performance Engine", or HPE for short.

The Engine of the Vespa GTS 300 Touring

A 278 cc 4-stroke engine with state-of-the-art petrol injection technology powers the Vespa GTS 300 i.e. Touring. Naturally, this Engine complies with the current exhaust emission standards. Vespa uses advanced injection technology and Catalytic Converters to minimise the environmental impact.

Situation used market Vespa GTS 300 Touring

Where are you looking for this vehicle?

Technical data

Engine

4-stroke 4 Valve

Displacement

278 cc

Power output

17.5 kW (23.8 hp) at 8,250 rpm

Cooling system

Liquid cooling

Gearbox

Automatic gearbox

Starter

Electric

Top speed

118 km/h

Front brake

Washer, 220 mm

gts-300

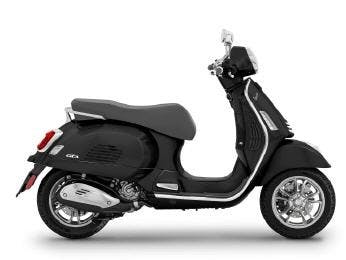

Vespa GTS 300

Rear brake

Washer, 200 mm

Front tyres

120/70 - 12 51 P

Rear tyres

130/70 - 12 62 P

Dimensions (L/W/H) in mm

1930 / 755 / 1170

Unladen weight

158 +/- 5 kg

permissible total weight

340 kg

Tank capacity

approx. 9.5 litres

Fuel type

Super unleaded

Emission standard

EURO5

Miscellaneous

The Vespa GTS 300 can be retrofitted with the MIA package, which is familiar from the GTS Super Tech. It enables a seamless connection between smartphone and scooter and unlocks functions that further enhance the riding experience. A GPS navigator is also included in the scope of delivery.

At SIP Scootershop, we have launched the SIP SERIES PORDOI. From the Sport Lever, Swing Arm and Rim to the Tank Cap, the Vespa can now have a uniform and coherent look. Today, the SIP SERIES PORDOI comprises over 150 products: high-quality accessories and Frame Parts for Classic and Modern Vespa scooters from a single source. All SERIES PORDOI items are designed in-house at SIP Scootershop. Of course, we know that a cool look is not everything. That's why we use materials of outstanding quality and produce with great attention to detail. SIP SERIES PORDOI is the result of our concentrated experience from many decades of enthusiasm and fascination for classic and modern Vespas. You will also find many other tuning products for modern Vespas.

General Information

  • Producer VESPA
  • Model GTS i.e. / Touring 4V HPE Euro5
  • Displacement 300 ccm
  • Cycles and cooling 4T / LC
  • Year of construction '23
  • Type ZAPMD3103,ZAPMD3104
  • Dimension MODERN VESPA
  • Vehicle type Vespa GTS/GTS Super/GTV/GT60 250-310

Years of production & chassis numbers

  • Year of construction:

Technical data

  • Chassis type: self-supporting steel frame
  • Chassis number position: behind the Helmet Case to the battery plate
  • Length: 1980 mm
  • Width: 795 mm
  • Height: 1190 mm
  • Seat height: 790 mm
  • Wheelbase: 1380 mm
  • Weight (empty): 163 kg
  • perm. total weight: 340 kg
  • Performance (PS): 23.8 PS
  • Performance (kW): 17.5 kW
  • at rpm: 8250
  • Torque: 26 Nm
  • Top speed: 120 km/h
  • Engine type: 4-stroke internal combustion engine
  • Engine manufacturer: PIAGGIO
  • Engine number: MD31M
  • position of engine number: on the Crankcase below the shock absorber mounting

Engine - cylinders, clutch & exhaust

  • Displacement: 278 ccm
  • Bore: 75 mm
  • Stroke: 63 mm
  • Number of cylinders: 1
  • Number of valves per cylinder (4-stroke): 4
  • Type of cooling: Liquid
  • Compression: 11:1
  • Oil supply: 1300ml SAE 5W-40
  • Starter: Electric starter
  • Clutch: Centrifugal clutch
  • Clutch type: Ø 134mm 3 jaws
  • Emission standard: Euro5

Engine - Carburetor

  • Mixture preparation: Injection

Engine - Transmission

  • Type of gearbox: Automatic
  • Variator: CVT drive 6 rollers
  • Variator weights: 21.0x17.0mm 14.0g

Engine - Ignition

  • Ignition type: Electronic Ignition
  • Spark plug type: NGK MR7BI-8

Chassis - tires and rims

  • Front tyre(s): 110/70-12
  • Front rim(s): 3.00x12
  • Rear tyre(s): 130/70-12
  • Rear rim(s): 3.00x12
  • Front tyre pressure: 1,8
  • Rear tyre pressure: 2,0-2,2

Chassis - Brakes

  • Brake system: front: Disc Brake / Rear: Disc Brake
  • Front brake: Brake Disc: 220 mm Pads: S74
  • Front brake operation: fully hydraulic
  • Rear brake: Brake Disc: 220 mm Pads: S62
  • Rear brake operation: fully hydraulic

Chassis - steering column & swing arm

  • Front wheel guide: short swing arm with one arm
  • Rear wheel guide: Drive set swing arm
  • Front suspension: Shock Absorber L 230 mm, integrated Springs
  • Rear suspension: 2x Shock Absorbers L 320 mm, integrated Springs

Electronics

  • Battery voltage: 12 V
  • Battery: YTX12-BS
  • Battery capacity: 10 Ah
  • Headlights: LED
  • Parking light: LED
  • Speedometer light: LED
  • Light control: LED
  • Taillights: LED
  • Brake lights: LED
  • Indicator lights: LED
  • Horn: 12V DC

Operating materials

  • Fuel tank capacity: 8.5 l
  • Included reserve: 2 l
  • Range (approx.): 258 km
  • Gearbox oil: SAE 80W-90
  • Amount of gearbox oil: 0.25 l
  • CO2 emission: 74 g/km
  • Fuel consumption: 3.3 l/100km

Explosion for this vehicle type

Spare parts exploded views

Spare parts exploded views

Our online exploded views for scooters make it much easier for you to find the right part. Each item is assigned exactly to the corresponding vehicle, with year of manufacture and chassis number. From our Expo lists, you can navigate directly to the spare parts, where a photo and a description are then available for almost every part. Conversely, you can also navigate from the item detail to the corresponding exploded view.
