Vespa GTS/GTS Super/GTV/GT60 250-310
VESPA
GTS i.e. / Touring 4V HPE Euro5 300 ccm 4T LC '20-'22 ZAPMD31, ZAPMD3101

VESPA GTS i.e. / Touring 4V HPE Euro5 300 ccm 4T LC '20-'22 ZAPMD31, ZAPMD3101

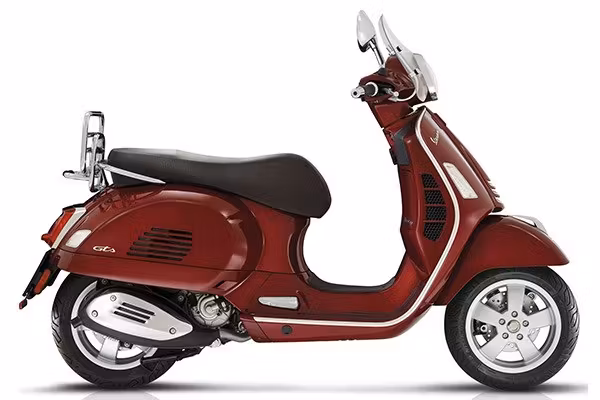

Photo from VESPA GTS i.e. / Touring 4V HPE Euro5 300 ccm 4T LC '20-'22 ZAPMD31, ZAPMD3101 | MODERN VESPA

Overview Vespa GTS 300 Touring

In 2008, Piaggio launched the Vespa GTS 300 i.e. Super with a 278 cc Engine, which not only underwent a technical but also a visual redesign. The changes included black-painted rims, a more angular Front Cover without parking lights, a darkened Headlight Unit, analogue instruments, no Luggage Carrier as standard and a Seat with a white border. From 2009, the model was also offered with a 124 cc injection engine as the Vespa GTS 125 i.e. Super. Another variant, the GTS Touring, is characterised by a short windscreen and a front carrier and is equipped exclusively with the 278 cc Engine.

Model history Vespa GTS 300 Touring

Whether travelling alone or as a couple, the classic, chrome-plated folding luggage rack at the rear, together with the spacious and secure Tray under the Seat, offered plenty of space for luggage. The Vespa GTS Touring from 2021 was available in the colours red Vignola and green Bosco. The high-tech engine technology left nothing to be desired in terms of performance and power delivery. Special details of the Vespa GTS Touring included the brown Seat Cover and the chrome-plated model emblem on the glove compartment. Fully equipped with LED technology, its lighting offered the best visibility and safety. Regardless of whether in the city or on a long tour through the countryside, the smooth-running four-stroke engines proved to be particularly powerful and efficient with reduced fuel consumption.

Used Vespa GTS 300 Touring market situation

Where are you looking for this vehicle?

General Information

  • Producer VESPA
  • Model GTS i.e. / Touring 4V HPE Euro5
  • Displacement 300 ccm
  • Cycles and cooling 4T / LC
  • Year of construction `20-`22
  • Type ZAPMD31, ZAPMD3101
  • Chassis number (from/to) ZAPMD3100, ZAPMD3101
  • Dimension MODERN VESPA
  • Vehicle type Vespa GTS/GTS Super/GTV/GT60 250-310

Years of production & chassis numbers

  • Year of construction:

Technical data

  • Chassis type: self-supporting steel frame
  • Chassis number position: behind the Helmet Case to the battery plate
  • Length: 1950 mm
  • Width: 755 mm
  • Height: 1170 mm
  • Seat height: 790 mm
  • Wheelbase: 1370 mm
  • Weight (empty): 161 kg
  • perm. total weight: 352 kg
  • Performance (PS): 24 PS
  • Performance (kW): 17.5 kW
  • at rpm: 8250
  • Torque: 26 Nm
  • Engine type: 4-stroke internal combustion engine
  • Engine manufacturer: PIAGGIO
  • Engine number: MD31M
  • position of engine number: on the Crankcase below the shock absorber mounting

Engine - cylinders, clutch & exhaust

  • Displacement: 278 ccm
  • Bore: 75 mm
  • Stroke: 63 mm
  • Number of cylinders: 1
  • Number of valves per cylinder (4-stroke): 4
  • Type of cooling: Liquid
  • Compression: 11:1
  • Oil supply: 1300ml SAE 5W-40
  • Starter: Electric starter
  • Clutch: Centrifugal clutch
  • Clutch type: Ø 134mm 3 jaws
  • Emission standard: Euro5

Engine - Carburetor

  • Mixture preparation: Injection

Engine - Transmission

  • Type of gearbox: Automatic
  • Variator: CVT drive 6 rollers
  • Variator weights: 21.0x17.0mm 14.0g

Engine - Ignition

  • Ignition type: Electronic Ignition
  • Spark plug type: NGK MR7BI-8

Chassis - tires and rims

  • Front tyre(s): 120/70-12
  • Front rim(s): 3.00x12
  • Rear tyre(s): 120/70-12
  • Rear rim(s): 3.00x12
  • Front tyre pressure: 1,8
  • Rear tyre pressure: 2,0 - 2,2

Chassis - Brakes

  • Brake system: front: Disc Brake / Rear: Disc Brake
  • Front brake: Brake Disc: 220 mm Pads: S51
  • Front brake operation: fully hydraulic
  • Rear brake: Brake Disc: 220 mm Pads: S52
  • Rear brake operation: fully hydraulic

Chassis - steering column & swing arm

  • Front wheel guide: short swing arm with one arm
  • Rear wheel guide: Drive set swing arm
  • Front suspension: Shock Absorber L 240 mm, integrated Springs
  • Rear suspension: Shock Absorber L 320 mm, integrated Springs

Electronics

  • Battery voltage: 12 V
  • Battery: YTX12-BS
  • Battery capacity: 10 Ah
  • Headlights: LED
  • Parking light: LED
  • Speedometer light: LED
  • Light control: LED
  • Taillights: LED
  • Brake lights: LED
  • Indicator lights: 12V 6W BAZ9s
  • Horn: 12V DC

Operating materials

  • Fuel tank capacity: 8.5 l
  • Included reserve: 2 l
  • Range (approx.): 266 km
  • Gearbox oil: SAE 80W-90
  • Amount of gearbox oil: 0.25 l
  • CO2 emission: 74g/km
  • Fuel consumption: 3.2 l/100km
