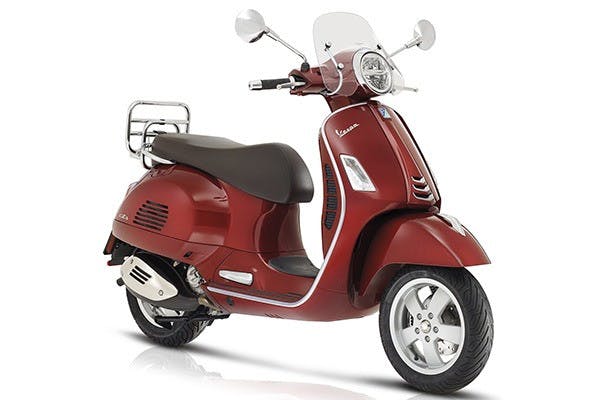

Photo from VESPA GTS i.e. / Touring 4V HPE 300 ccm 4T LC '19-'20 ZAPMA36, ZAPMA39 | MODERN VESPA

Overview Vespa GTS 300 Touring

In 2008, Piaggio launched the Vespa GTS 300 i.e. Super with a 278 cc Engine, which not only underwent a technical but also a visual redesign. The changes included black-painted rims, a more angular Front Cover without parking lights, a darkened Headlight Unit, analogue instruments, no Luggage Carrier as standard and a Seat with a white border. From 2009, the model was also offered with a 124 cc injection engine as the Vespa GTS 125 i.e. Super. Another variant, the GTS Touring, is characterised by a short windscreen and a front carrier and is equipped exclusively with the 278 cc Engine.

Model history Vespa GTS 300 Touring

The 2019 GTS 300 was presented at the Eicma in November 2018 and was updated in two areas: the design and the Engine. The look was largely characterised by the new, longer "tie" on the front of the Legshield. This element, which was originally introduced on the 946 and later adopted by the Primavera and Sprint models, also suits the GTS very well. The Legshield was also given a light edge and a slightly slimmer design. The Air Intakes on the side were fitted with a honeycomb-shaped Grill, and the Covers in the lower area at the rear were also subtly revised. The new Headlight Unit and rear light, both of which are now equipped with full LED technology, provide a more modern touch.

The Engine of the Vespa GTS 300 Touring

The familiar, liquid-cooled SOHC single-cylinder engine has been revised quite radically, as has the CVT gearbox. The Cylinder Head was completely new with larger Valves, different Springs and a new Camshaft. The Piston, the injection - now with high pressure -, the Airbox including intake ducts and the electronics were also replaced in the new Engine. It already met the Euro 5 standard, as Piaggio explained, and was therefore significantly cleaner, more fuel-efficient and also - an important point for Euro 5 - quieter. The modified CVT transmission contributed to this by emitting fewer vibrations and shielding the resulting noise better.
Surprisingly, the Engine was still able to provide more power. Just under 24 hp meant an increase of twelve, 26 Newton metres an increase of 18 percent. This meant that the new single-cylinder engine had earned the designation HPE, at least from a Vespa perspective: High Performance Engine. It was the most powerful Engine ever installed in a production Vespa.

Situation used Vespa GTS 300 Touring market

Where do you look for this vehicle?

General Information

  • Producer VESPA
  • Model GTS i.e. / Touring 4V HPE
  • Displacement 300 ccm
  • Cycles and cooling 4T / LC
  • Year of construction `19-`20
  • Type ZAPMA36, ZAPMA39
  • Chassis number (from/to) ZAPMA36, ZAPMA39
  • Dimension MODERN VESPA
  • Vehicle type Vespa GTS/GTS Super/GTV/GT60 250-310

Years of production & chassis numbers

  • Year of construction:

Technical data

  • Chassis type: self-supporting steel frame
  • Chassis number position: behind the Helmet Case to the battery plate
  • Length: 1950 mm
  • Width: 755 mm
  • Height: 1170 mm
  • Seat height: 790 mm
  • Wheelbase: 1375 mm
  • Weight (empty): 160 kg
  • perm. total weight: 340 kg
  • Performance (PS): 23.8 PS
  • Performance (kW): 17.5 kW
  • at rpm: 8250
  • Torque: 26 Nm
  • Top speed: 118 km/h
  • Engine type: 4-stroke internal combustion engine
  • Engine manufacturer: PIAGGIO
  • Engine number: MA36M
  • position of engine number: on the Crankcase below the shock absorber mounting

Engine - cylinders, clutch & exhaust

  • Displacement: 278 ccm
  • Bore: 75 mm
  • Stroke: 63 mm
  • Number of cylinders: 1
  • Number of valves per cylinder (4-stroke): 4
  • Type of cooling: Liquid
  • Compression: 11:1
  • Oil supply: 1300ml SAE 5W-40
  • Starter: Electric starter
  • Clutch: Centrifugal clutch
  • Clutch type: Ø 134mm 3 jaws
  • Emission standard: Euro4

Engine - Carburetor

  • Mixture preparation: Injection

Engine - Transmission

  • Type of gearbox: Automatic
  • Variator: CVT drive 6 rollers
  • Variator weights: 21.0x17.0mm 14.0g

Engine - Ignition

  • Ignition type: Electronic Ignition
  • Spark plug type: NGK MR7BI-8

Chassis - tires and rims

  • Front tyre(s): 120/70-12
  • Front rim(s): 3.00x12
  • Rear tyre(s): 130/70-12
  • Rear rim(s): 3.00x12
  • Front tyre pressure: 1,8
  • Rear tyre pressure: 2,0 - 2,2

Chassis - Brakes

  • Brake system: front: Disc Brake / Rear: Disc Brake
  • Front brake: Brake Disc: 220 mm Pads: S51
  • Front brake operation: fully hydraulic
  • Rear brake: Brake Disc: 220 mm Pads: S52
  • Rear brake operation: fully hydraulic

Chassis - steering column & swing arm

  • Front wheel guide: short swing arm with one arm
  • Rear wheel guide: Drive set swing arm
  • Front suspension: Shock Absorber L 235 mm, integrated Springs
  • Rear suspension: 2x Shock Absorbers L 320 mm, integrated Springs

Electronics

  • Battery voltage: 12 V
  • Battery: YTX12-BS
  • Battery capacity: 10 Ah
  • Headlights: LED
  • Parking light: LED
  • Speedometer light: LED
  • Light control: LED
  • Taillights: LED
  • Brake lights: LED
  • Indicator lights: 12V 6W BAZ9s
  • Horn: 12V DC

Operating materials

  • Fuel tank capacity: 8.5 l
  • Included reserve: 2 l
  • Range (approx.): 272 km
  • Gearbox oil: SAE 80W-90
  • Amount of gearbox oil: 0.25 l
  • CO2 emission: 73g/km
  • Fuel consumption: 3.13 l/100km
