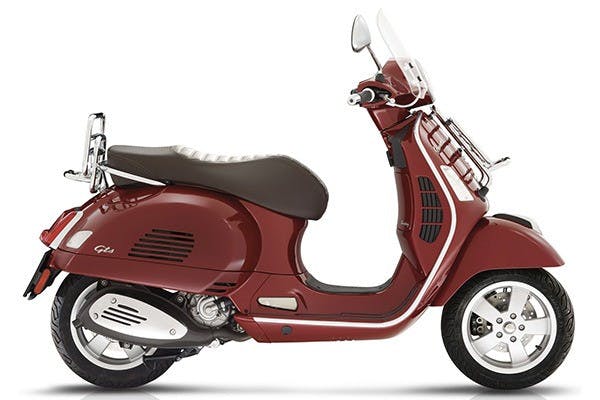

Photo from VESPA GTS i.e. / Touring 300 ccm 4T LC '17-'18 ZAPMA3300 | MODERN VESPA

Overview Vespa GTS 300 Touring

In 2008, Piaggio launched the Vespa GTS 300 i.e. Super with a 278 cc Engine, which not only underwent a technical but also a visual redesign. The changes included black-painted rims, a more angular Front Cover without parking lights, a darkened Headlight Unit, analogue instruments, no Luggage Carrier as standard and a Seat with a white border. From 2009, the model was also offered with a 124 cc injection engine as the Vespa GTS 125 i.e. Super. Another variant, the GTS Touring, is characterised by a short windscreen and a front carrier and is equipped exclusively with the 278 cc Engine.

Model history of the Vespa GTS 300 Touring

In 2017, the Vespa GTS was further developed and now offers extensive standard equipment, including ABS and ASR safety systems. Four models are available: Vespa GTS, GTS Super, GTS Touring and Vespa GTS SuperSport. The Vespa GTS Touring is characterised by its larger windscreen, which offers sufficient protection even at high speeds. It is also characterised by the front and rear Luggage Carriers which, together with the Helmet Case, offer extensive storage space. The Touring version is also characterised by a special logo on the Front Cover and is equipped with two Luggage Carriers. The GTS Touring is available in metallic red and metallic brown.

All 2017 GTS models are equipped with a four-stroke single-cylinder engine with electronic injection, which delivers 15.6 kW (21.2 hp) at 7,750 rpm and a maximum torque of 22 Nm at just 5,000 rpm. Piaggio was the first manufacturer to introduce electronic traction control on scooters, complemented by ABS, both of which are standard on the Vespa GTS 300 family.

Situation used market Vespa GTS 300 Touring

Where do you look for this vehicle?

General Information

  • Producer VESPA
  • Model GTS i.e. / Touring
  • Displacement 300 ccm
  • Cycles and cooling 4T / LC
  • Year of construction `17-`18
  • Type ZAPMA3300
  • Chassis number (from/to) ZAPMA3300
  • Dimension MODERN VESPA
  • Vehicle type Vespa GTS/GTS Super/GTV/GT60 250-310

Years of production & chassis numbers

  • Year of construction:

Technical data

  • Chassis type: self-supporting steel frame
  • Chassis number position: behind the Helmet Case to the battery plate
  • Length: 1930 mm
  • Width: 755 mm
  • Height: 1170 mm
  • Seat height: 790 mm
  • Wheelbase: 1375 mm
  • Ground clearance: 120 mm
  • Weight (empty): 160 kg
  • perm. total weight: 310 kg
  • Performance (PS): 21 PS
  • Performance (kW): 15.6 kW
  • at rpm: 7750
  • Torque: 22 Nm
  • Top speed: 118 km/h
  • Engine type: 4-stroke internal combustion engine
  • Engine manufacturer: PIAGGIO
  • Engine number: MA33M
  • position of engine number: on the Crankcase below the shock absorber mounting

Engine - cylinders, clutch & exhaust

  • Displacement: 278 ccm
  • Bore: 75 mm
  • Stroke: 63 mm
  • Number of cylinders: 1
  • Number of valves per cylinder (4-stroke): 4
  • Type of cooling: Liquid
  • Compression: 11:1
  • Oil supply: 1300ml SAE 5W-40
  • Starter: Electric starter
  • Clutch: Centrifugal clutch
  • Clutch type: Ø 134mm 3 jaws
  • Emission standard: Euro4

Engine - Carburetor

  • Mixture preparation: Injection

Engine - Transmission

  • Type of gearbox: Automatic
  • Variator: CVT drive 6 rollers
  • Variator weights: 21.0x17.0mm 13.8g

Engine - Ignition

  • Ignition type: Electronic Ignition
  • Spark plug type: NGK CR8EKB

Chassis - tires and rims

  • Front tyre(s): 120/70-12
  • Front rim(s): 3.00x12
  • Rear tyre(s): 130/70-12
  • Rear rim(s): 3.00x12
  • Front tyre pressure: 2,0
  • Rear tyre pressure: 2,3 - 2,6

Chassis - Brakes

  • Brake system: front: Disc Brake / Rear: Disc Brake
  • Front brake: Brake Disc: 220 mm Pads: S51
  • Front brake operation: fully hydraulic
  • Rear brake: Brake Disc: 220 mm Pads: S52
  • Rear brake operation: fully hydraulic

Chassis - steering column & swing arm

  • Front wheel guide: short swing arm with one arm
  • Rear wheel guide: Drive set swing arm
  • Front suspension: Shock Absorber L 240 mm, integrated Springs
  • Rear suspension: 2x Shock Absorbers L 320 mm, integrated Springs

Electronics

  • Battery voltage: 12 V
  • Battery: YTX12-BS
  • Battery capacity: 10 Ah
  • Headlights: H4 12V 60/55W P43t
  • Parking light: LED
  • Speedometer light: LED
  • Light control: LED
  • Taillights: 12V 5W W2,1x9,5d
  • Brake lights: 12V 16W W2,1x9,5d
  • Indicator lights: 12V 6W BAZ9s
  • Horn: 12V DC

Operating materials

  • Fuel tank capacity: 8.5 l
  • Included reserve: 2 l
  • Range (approx.): 386 km
  • Gearbox oil: SAE 80W-90
  • Amount of gearbox oil: 0.25 l
  • CO2 emission: 74g/km
  • Fuel consumption: 3.2 l/100km
