Vespa GTS/GTS Super/GTV/GT60 250-310
VESPA
GTS i.e. / Touring 300 ccm 4T LC '14-'16 ZAPM45200 / ZAPM45202

VESPA GTS i.e. / Touring 300 ccm 4T LC '14-'16 ZAPM45200 / ZAPM45202

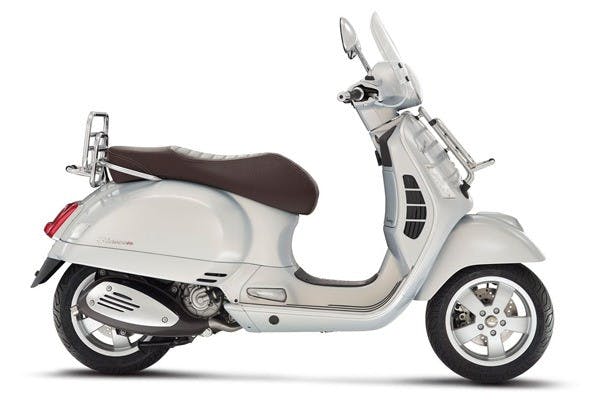

Photo from VESPA GTS i.e. / Touring 300 ccm 4T LC '14-'16 ZAPM45200 / ZAPM45202 | MODERN VESPA

Overview Vespa GTS 300 Touring

In 2008, Piaggio launched the Vespa GTS 300 i.e. Super with a 278 cc Engine, which not only underwent a technical but also a visual redesign. The changes included black-painted rims, a more angular Front Cover without parking lights, a darkened Headlight Unit, analogue instruments, no Luggage Carrier as standard and a Seat with a white border. From 2009, the model was also offered with a 124 cc injection engine as the Vespa GTS 125 i.e. Super. Another variant, the GTS Touring, is characterised by a short windscreen and a front carrier and is equipped exclusively with the 278 cc Engine.

Model history of the Vespa GTS 300 Touring

In 2014, the Touring version of the most powerful Vespa series was modernised in Milan. The model features a raised Wind Shield, which offers riders protection from the airstream. The storage options are versatile, with space for luggage at the front, rear or under the Seat. The blue illuminated instrument panel with LCD display shows Piaggio's endeavour to combine advanced technology with classic design, while upholding traditional values. Modern features such as a USB interface, LED technology and ABS and traction control as standard round off the equipment. This Touring version is powered by a 300 cc 4-valve, 4-stroke single-cylinder engine with electronic injection, which delivers a maximum output of 22 hp at 7500 rpm and a torque of 22.3 Nm.

Situation used market Vespa GTS 300 Touring

Where are you looking for this vehicle?

General Information

  • Producer VESPA
  • Model GTS i.e. / Touring
  • Displacement 300 ccm
  • Cycles and cooling 4T / LC
  • Year of construction `14-`16
  • Type ZAPM45200 / ZAPM45202
  • Chassis number (from/to) ZAPM45200, ZAPM45202
  • Dimension MODERN VESPA
  • Vehicle type Vespa GTS/GTS Super/GTV/GT60 250-310

Years of production & chassis numbers

  • Year of construction:

Technical data

  • Chassis type: self-supporting steel frame
  • Chassis number position: behind the Helmet Case to the battery plate
  • Length: 1930 mm
  • Width: 755 mm
  • Height: 1170 mm
  • Seat height: 790 mm
  • Wheelbase: 1370 mm
  • Weight (empty): 158 kg
  • perm. total weight: 340 kg
  • Performance (PS): 21.5 PS
  • Performance (kW): 15.8 kW
  • at rpm: 7500
  • Torque: 22.3 Nm
  • Top speed: 120 km/h
  • Engine type: 4-stroke internal combustion engine
  • Engine manufacturer: PIAGGIO
  • Engine number: M458M
  • position of engine number: on the Crankcase below the shock absorber mounting

Engine - cylinders, clutch & exhaust

  • Displacement: 278 ccm
  • Bore: 75 mm
  • Stroke: 63 mm
  • Number of cylinders: 1
  • Number of valves per cylinder (4-stroke): 4
  • Type of cooling: Liquid
  • Compression: 11:1
  • Oil supply: 1300ml SAE 5W-40
  • Starter: Electric starter
  • Clutch: Centrifugal clutch
  • Clutch type: Ø 134mm 3 jaws
  • Emission standard: Euro3

Engine - Carburetor

  • Mixture preparation: Injection

Engine - Transmission

  • Type of gearbox: Automatic
  • Variator: CVT drive 6 rollers
  • Variator weights: 21.0x17.0mm 13.8g

Engine - Ignition

  • Ignition type: Electronic Ignition
  • Spark plug type: NGK CR8EKB

Chassis - tires and rims

  • Front tyre(s): 120/70-12
  • Front rim(s): 3.00x12
  • Rear tyre(s): 130/70-12
  • Rear rim(s): 3.00x12
  • Front tyre pressure: 1,8
  • Rear tyre pressure: 2,0 - 2,2

Chassis - Brakes

  • Brake system: front: Disc Brake / Rear: Disc Brake
  • Front brake: Brake Disc: 220 mm Pads: S51
  • Front brake operation: fully hydraulic
  • Rear brake: Brake Disc: 220 mm Pads: S52
  • Rear brake operation: fully hydraulic

Chassis - steering column & swing arm

  • Front wheel guide: short swing arm with one arm
  • Rear wheel guide: Drive set swing arm
  • Front suspension: Shock Absorber L 285 mm, integrated Springs
  • Rear suspension: 2x Shock Absorbers L 320 mm, integrated Springs

Electronics

  • Battery voltage: 12 V
  • Battery: YT12B-BS
  • Battery capacity: 10 Ah
  • Headlights: H4 12V 60/55W P43t
  • Parking light: 12V 5W W2,1x9,5d
  • Speedometer light: LED
  • Light control: LED
  • Taillights: 12V 5W W2,1x9,5d
  • Brake lights: 12V 16W W2,1x9,5d
  • Indicator lights: front: 12V 6W BAZ9s Rear: 12V 10W BA15s
  • Horn: 12V DC

Operating materials

  • Fuel tank capacity: 9.5 l
  • Included reserve: 2 l
  • Range (approx.): 279 km
  • Gearbox oil: SAE 80W-90
  • Amount of gearbox oil: 0.25 l
  • CO2 emission: 74g/km
  • Fuel consumption: 3.4 l/100km

Further technical details / features

  • Info:

    Please note:

    Different details and dimensions due to country specifications for FIN ZAPM45200. For example Europe/USA to Taiwan

    EU/USA:

    • Vehicle length: 2230mm

    • Vehicle weight: 158kg

    • Power: 16.4kW

    • maximum torque: 22Nm at 6500rpm

    Taiwan:

    • Vehicle length: 1930mm

    • Vehicle weight: 151kg

    • Power: 15.8kW

    • maximum torque: 22.3Nm at 5000rpm.

    For these reasons, we cannot always determine which structural conditions are given in which countries and which items fit without problems.

    We should include this in a text. Further details will follow.
