Vespa GT/GTL/GTS/GTV 125-200
VESPA
GTS i.e. Super / Super Sport / Supertech 4V iGet Euro5 125 ccm 4T LC '23-'24 ZAPMD3202 / ZAPMD3203

VESPA GTS i.e. Super / Super Sport / Supertech 4V iGet Euro5 125 ccm 4T LC '23- ZAPMD3202 / ZAPMD3203

Model placeholder image

Overview

The Vespa GTS 125 was first introduced in 2005. This model represented a significant step in the evolution of the Vespa, offering greater performance as well as more comfort and functionality compared to the earlier models. With the GTS model, Vespa pursued the strategy of combining the traditional charm of the brand with modern technology and performance. The Vespa GTS differs from its predecessor, the Vespa GT, mainly due to the modified Engines and several design changes, including an additional Parking Light integrated into the Horn Cover at the front, a fin on the front Mudguard, a chrome Luggage Carrier, an ergonomically designed Seat, sporty moulded plastic trim and a differently designed Rear Light.

Model history

For many years, there were only minor changes to the Vespa GTS 125 models. It was not until 2023 that the GTS Super, Super Tech and Super Sport underwent radical changes. The Vespa GTS 125 from 2023 is characterised by its comfort, precision and riding stability, which is ensured by 12-inch aluminium alloy wheels. The black rims, emphasised by Diamond Cut and a refined finish, create a visual highlight in combination with the glossy paintwork. To ensure safe stops, two hydraulic brakes with 220 mm Brake Discs and 2-channel ABS are installed. An additional level of safety is provided by ASR, the traction control system. In terms of environmental friendliness and efficiency, the Vespa GTS Super 125 scores points with an automatic start-stop system that can be switched off. The liquid-cooled single-cylinder four-stroke engine of the Vespa GTS Super 125 uses state-of-the-art petrol injection technology to deliver optimum performance. The Engine delivers 10.3 kW or 14 hp in this Model.

gts-125-super

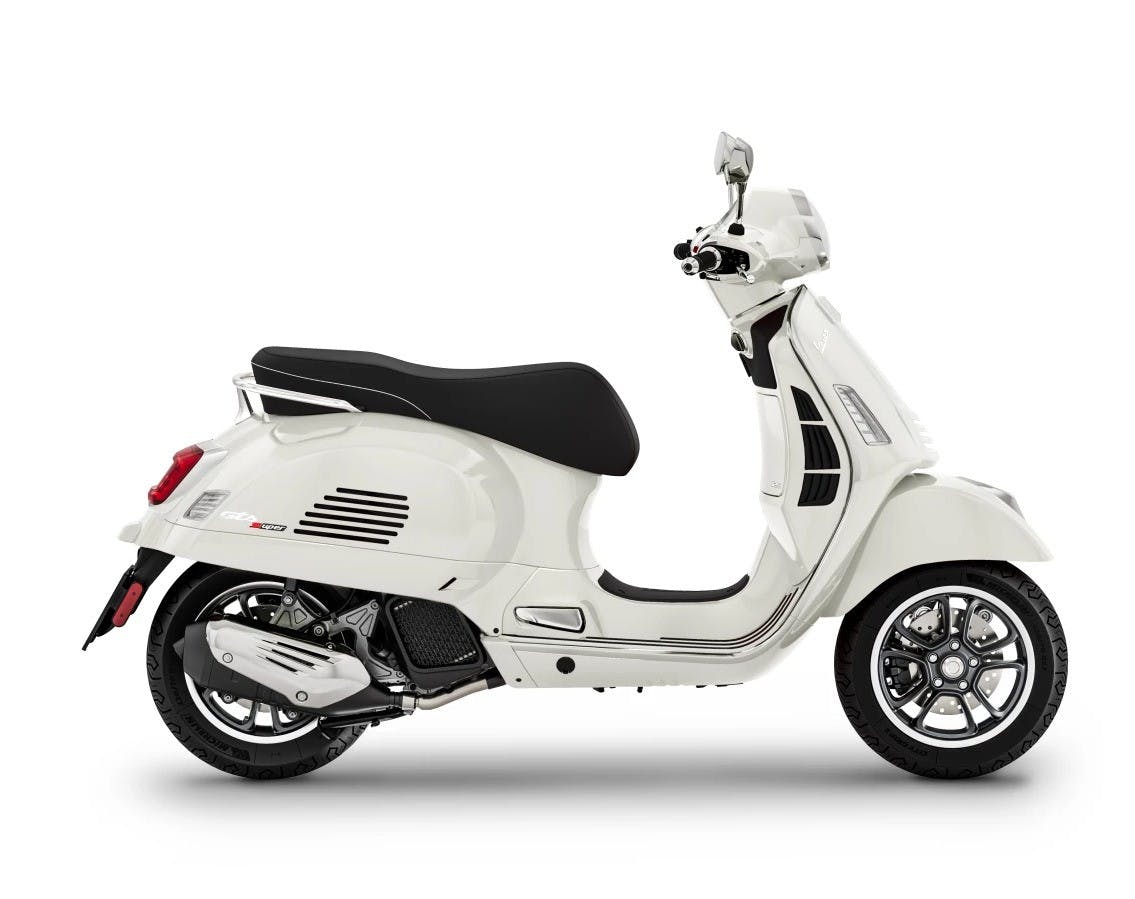

GTS 125 Super

Technical data

Engine

4-stroke 4 Valve

Displacement

125 cc

Power output

10.3 kW (14 hp) at 8,750 rpm

Cooling system

Liquid cooling

Gearbox

Automatic gearbox

Starter

Electric

Top speed

103 km/h

Front brake

Washer, 220 mm

Rear brake

Washer, 200 mm

Front tyres

120/70 - 12 51 P

Rear tyres

130/70 - 12 62 P

Dimensions (L/W/H) in mm

1950 / 755 / 790

Unladen weight

147 +/- 5 kg

permissible total weight

340 kg

Tank capacity

approx. 7.0 litres

Fuel type

Super unleaded

Emission standard

EURO5

gts-125-super-sport

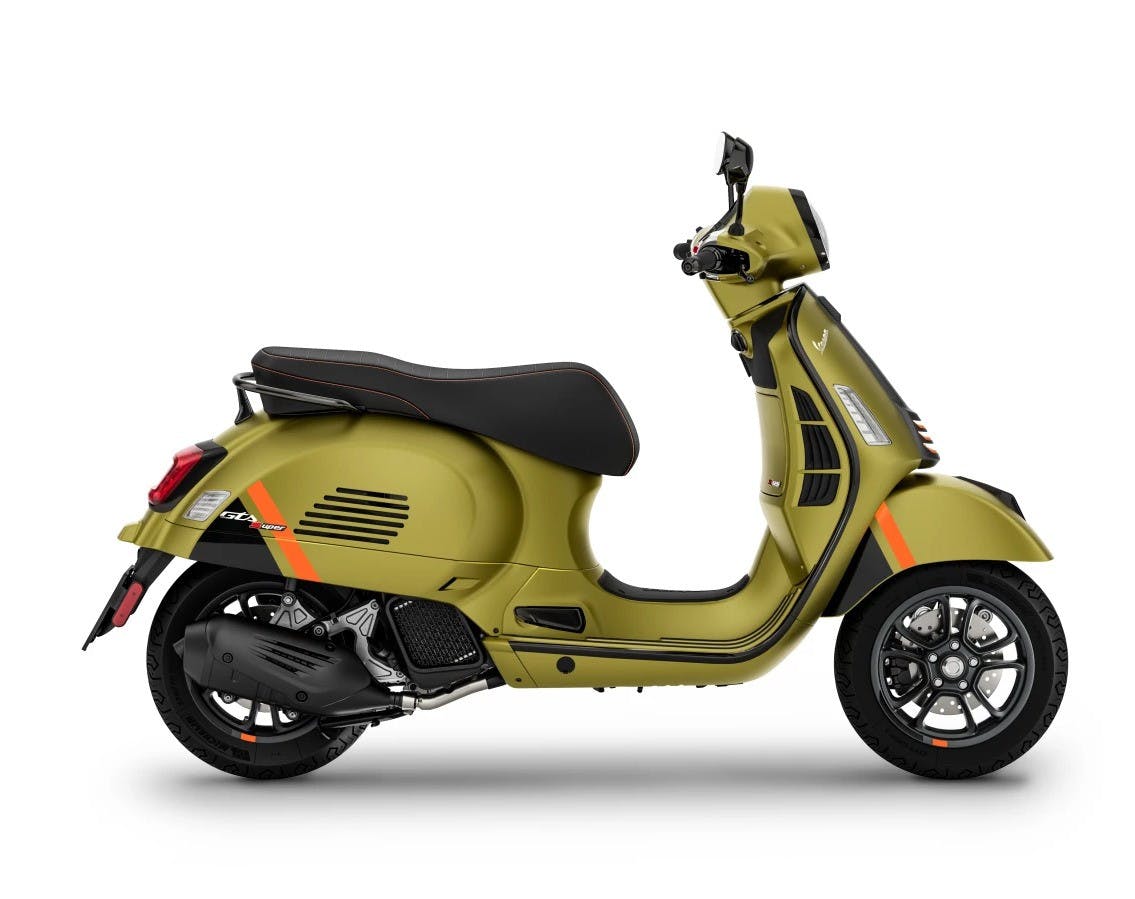

GTS 125 Super Sport

Technical data

Engine

4-stroke 4 Valve

Displacement

125 cc

Power output

10.3 kW (14 hp) at 8,750 rpm

Cooling system

Liquid cooling

Gearbox

Automatic gearbox

Starter

Electric

Top speed

103 km/h

Front brake

Washer, 220 mm

Rear brake

Washer, 200 mm

Front tyres

120/70 - 12 51 P

Rear tyres

130/70 - 12 62 P

Dimensions (L/W/H) in mm

1980 / 765 / 790

Unladen weight

147 +/- 5 kg

permissible total weight

340 kg

Tank capacity

approx. 7.0 litres

Fuel type

Super unleaded

Emission standard

EURO5

gts-125-super-tech

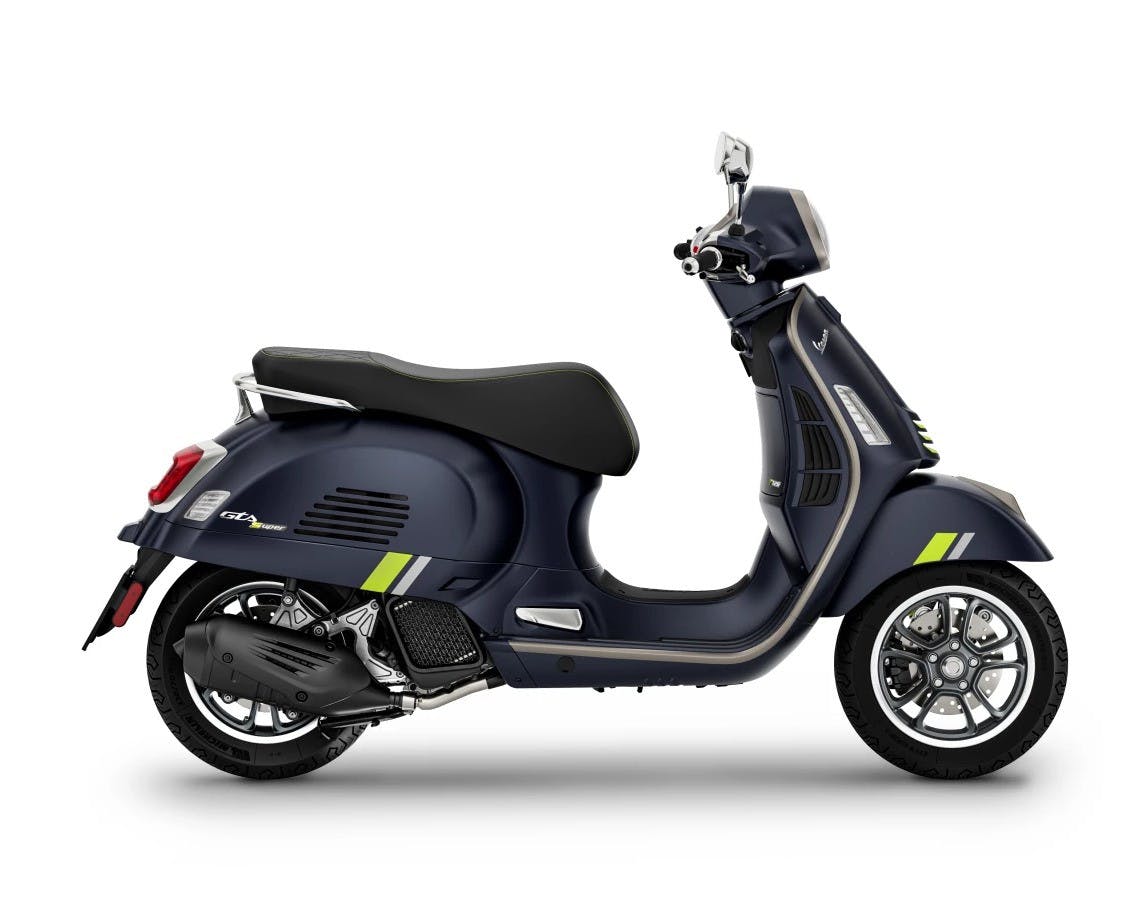

GTS 125 Super Tech

Technical data

Engine

4-stroke 4 Valve

Displacement

125 cc

Power output

10.3 kW (14 hp) at 8,750 rpm

Cooling system

Liquid cooling

Gearbox

Automatic gearbox

Starter

Electric

Top speed

103 km/h

Front brake

Washer, 220 mm

Rear brake

Washer, 200 mm

Front tyres

120/70 - 12 51 P

Rear tyres

130/70 - 12 62 P

Dimensions (L/W/H) in mm

1980 / 765 / 790

Unladen weight

147 +/- 5 kg

permissible total weight

340 kg

Tank capacity

approx. 7.0 litres

Fuel type

Super unleaded

Emission standard

EURO5

Other features

Equipped with an exclusive 4.3-inch TFT colour display, the Vespa GTS Super Tech provides instant and easy-to-read riding information. The Vespa MIA package, which comes as standard on this Model, enables a seamless connection between smartphone and scooter and unlocks functions that further enhance the riding experience. A GPS navigator is also included in the scope of delivery. The Vespa GTS and GTS Super can be retrofitted with the Vespa MIA connectivity system.

At SIP Scootershop, we have launched the SIP SERIES PORDOI. From the Sport Lever, Swing Arm and Rim to the Tank Cap, the Vespa can now have a uniform and coherent look. Today, the SIP SERIES PORDOI comprises over 150 products: high-quality accessories and Frame Parts for Classic and Modern Vespa scooters from a single source. All SERIES PORDOI items are designed in-house at SIP Scootershop. Of course, we know that a cool look is not everything. That's why we use materials of outstanding quality and produce with great attention to detail. SIP SERIES PORDOI is the result of our concentrated experience from many decades of enthusiasm and fascination for classic and modern Vespas. You will also find many other tuning products for modern Vespas.

General Information

  • Producer VESPA
  • Model GTS i.e. Super / Super Sport / Supertech 4V iGet Euro5
  • Displacement 125 ccm
  • Cycles and cooling 4T / LC
  • Year of construction '23
  • Type ZAPMD3202 / ZAPMD3203
  • Dimension MODERN VESPA
  • Vehicle type Vespa GT/GTL/GTS/GTV 125-200

Years of production & chassis numbers

  • Year of construction:

Technical data

  • Chassis type: self-supporting steel frame
  • Chassis number position: behind the Helmet Case to the battery plate
  • Length: 1980 mm
  • Width: 765 mm
  • Height: 1190 mm
  • Seat height: 790 mm
  • Wheelbase: 1385 mm
  • Weight (empty): 150 kg
  • perm. total weight: 340 kg
  • Performance (PS): 14 PS
  • Performance (kW): 10.3 kW
  • at rpm: 8750
  • Torque: 12 Nm
  • Top speed: 92 km/h
  • Engine type: 4-stroke internal combustion engine
  • Engine manufacturer: PIAGGIO
  • Engine number: MD32M
  • position of engine number: on the Crankcase below the shock absorber mounting

Engine - cylinders, clutch & exhaust

  • Displacement: 124 ccm
  • Bore: 52 mm
  • Stroke: 58.7 mm
  • Number of cylinders: 1
  • Number of valves per cylinder (4-stroke): 4
  • Type of cooling: Liquid
  • Compression: 12,5:1
  • Oil supply: 1300ml SAE 5W-40
  • Starter: Electric starter
  • Clutch: Centrifugal clutch
  • Clutch type: Ø 125mm 3 jaws
  • Stationary noise: 83 dB(a)
  • Driving noise: 74 dB(a)
  • Emission standard: Euro5

Engine - Carburetor

  • Mixture preparation: Injection

Engine - Transmission

  • Type of gearbox: Automatic
  • Variator: CVT drive 6 rollers
  • Variator weights: 19.0x17.0mm 10.0g

Engine - Ignition

  • Ignition type: Electronic Ignition
  • Spark plug type: LMAR8AI-8

Chassis - tires and rims

  • Front tyre(s): 120/70-12
  • Front rim(s): 3.00x12
  • Rear tyre(s): 130/70-12
  • Rear rim(s): 3.00x12
  • Front tyre pressure: 1,8
  • Rear tyre pressure: 2,0 - 2,2

Chassis - Brakes

  • Brake system: front: Disc Brake / Rear: Disc Brake
  • Front brake: Brake Disc: 220 mm Pads: S51
  • Front brake operation: fully hydraulic
  • Rear brake: Brake Disc: 220 mm Pads: S52
  • Rear brake operation: fully hydraulic

Chassis - steering column & swing arm

  • Front wheel guide: short swing arm with one arm
  • Rear wheel guide: Drive set swing arm
  • Front suspension: Shock Absorber L 230 mm, integrated Springs
  • Rear suspension: 2x Shock Absorbers L 320 mm, integrated Springs

Electronics

  • Battery voltage: 12 V
  • Battery: YTX7L-BS
  • Battery capacity: 6 Ah
  • Headlights: LED
  • Parking light: LED
  • Speedometer light: LED
  • Light control: LED
  • Taillights: LED
  • Brake lights: LED
  • Indicator lights: LED
  • Horn: 12V DC

Operating materials

  • Fuel tank capacity: 7.5 l
  • Included reserve: 1.5 l
  • Range (approx.): 313 km
  • Gearbox oil: SAE 80W-90
  • Amount of gearbox oil: 0.325 l
  • CO2 emission: 59g/km
  • Fuel consumption: 2.4 l/100km
