Vespa GTS/GTS Super/GTV/GT60 250-310
VESPA
GTS i.e. Classic / Super / Super Sport Euro5+ 310 ccm 4T LC '24- ZAPMD3500

VESPA GTS i.e. Classic / Super / Super Sport Euro5+ 310 ccm 4T LC '24- ZAPMD3500

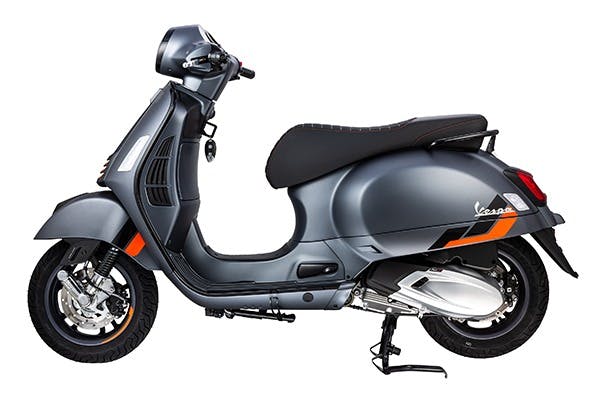

Photo from VESPA GTS i.e. Classic / Super / Super Sport Euro5+ 310 ccm 4T LC '24- ZAPMD3500 | MODERN VESPA

Overview Vespa GTS 310

The new Vespa GTS 310 combines classic design with modern technology and should set new standards in the premium scooter segment. With a revised Engine, state-of-the-art equipment and a wide range of colours, it is suitable for both city rides and longer tours. Its elegant appearance remains true to the traditional Vespa aesthetic.

Model history Vespa GTS 310

The Vespa GTS series has been synonymous with style and performance since its launch. The GTS 310 continues this tradition and marks an important step in the further development of the model series. With its new Engine, it is, according to Piaggio, "the most powerful GTS ever", developed for riders who appreciate style and dynamics in equal measure. Its predecessors, such as the GTS 300, have already achieved cult status, and the GTS 310 builds on this riding experience.

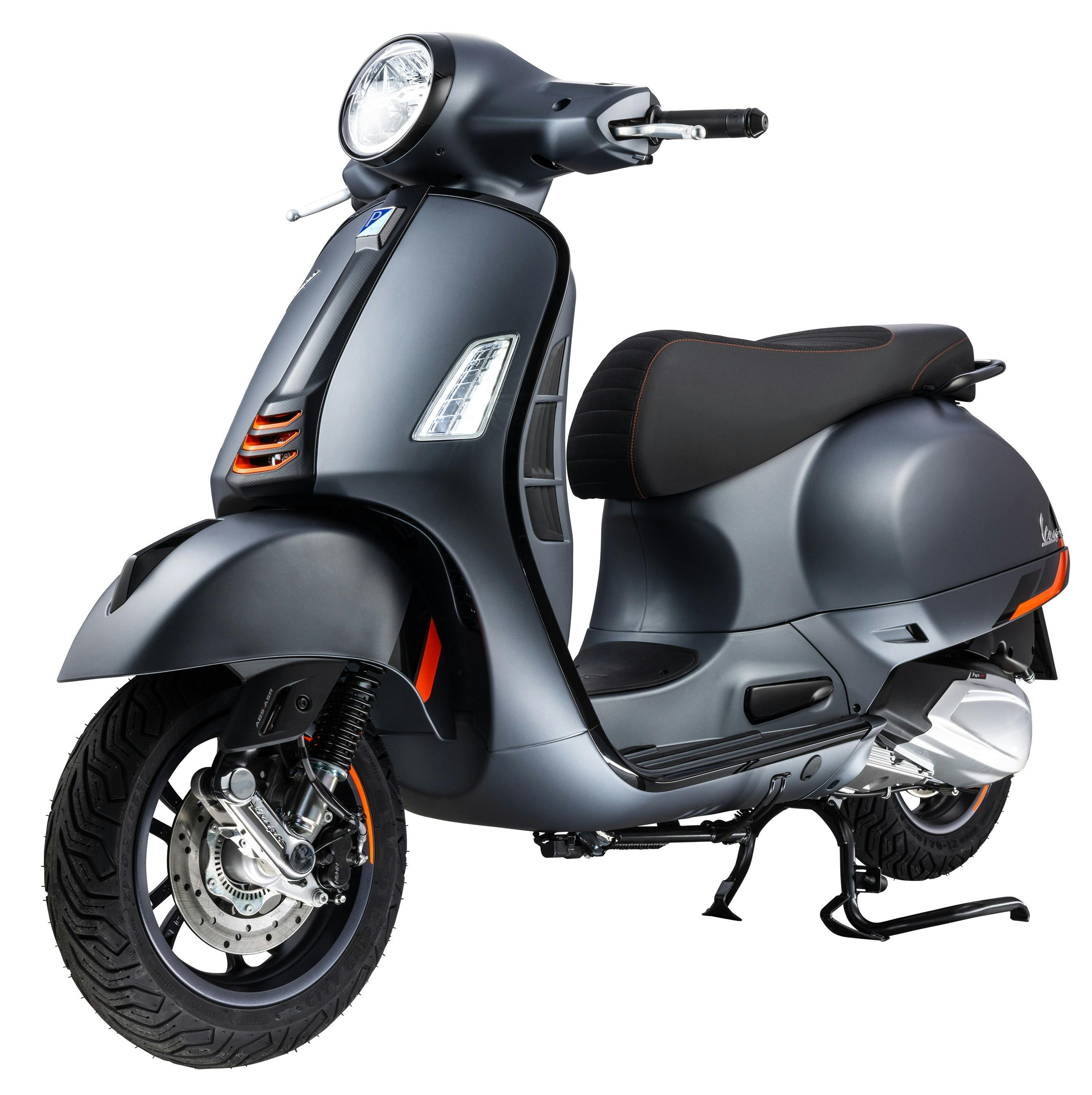

vespa-gts-310-supersport-b03-kopie
Vespa GTS 310

The Engine of the Vespa GTS 310

The Vespa GTS 310 is the latest model variant from Piaggio and stands out above all with its revised Engine. With a displacement of 309 cc, it has around 31 cc more than its predecessor, the GTS 300, and offers slightly more power and torque, although this is hardly noticeable when it comes to acceleration and top speed. The liquid-cooled Engine was developed to fulfil the Euro E 5+ emissions standard while ensuring high efficiency and low consumption.

Vespa GTS 310: a comparison with the Vespa GTS 300

Visually, there are hardly any differences between the GTS 310 and the GTS 300. The design, chassis and brakes remain unchanged, as the chassis was already optimised in 2023. One welcome innovation concerns the controls: The switches now come in matt black casings , which was previously only possible by retrofitting. These switches are also compatible with the GTS 300, which is particularly interesting for owners of the previous model. Other details such as rims, levers and mirrors remain identical and are also compatible between the two models.

The main difference lies in the Engine: The GTS 310 has a stroke lengthened to 70.1 mm, while the bore remains unchanged at 75 mm. According to the manufacturer, the power output increases from 23.8 hp to 25 hp, and the torque increases from 26 Nm to 28.9 Nm - the latter at a lower speed of 6,500 rpm, which promises more pulling power.

However, a differentiated picture emerges on the test bench. At 21.4 hp, the measured rear wheel power of the GTS 310 is almost identical to that of the GTS 300 (21.5 hp). The difference only becomes clear at higher speeds: while the GTS 300 loses power from around 60 km/h, the GTS 310 remains stable. There is a slight change in the top speed, as the new version is electronically limited a little earlier.

Used Vespa GTS 310 market situation

The Vespa GTS 310 is a relatively new model and therefore hard to find on the used market. Where do you look for this vehicle?

Other Vespa GTS 310

The Vespa GTS 310 is equipped with the latest technologies, including a new TFT display that clearly shows all important information. Bluetooth connectivity enables the use of navigation Apps and music control directly from the Handlebar. The chassis has been optimised to ensure even more agile and comfortable handling. The ABS system and ASR traction control ensure safety.

General Information

  • Producer VESPA
  • Model GTS i.e. Classic / Super / Super Sport Euro5+
  • Displacement 310 ccm
  • Cycles and cooling 4T / LC
  • Year of construction '24-
  • Chassis number (from/to) ZAPMD3500
  • Dimension MODERN VESPA
  • Vehicle type Vespa GTS/GTS Super/GTV/GT60 250-310

Years of production & chassis numbers

  • Year of construction:

Technical data

  • Chassis type: self-supporting steel frame
  • Chassis number position: behind the Helmet Case to the battery plate
  • Length: 1980 mm
  • Width: 765 mm
  • Height: 1190 mm
  • Seat height: 790 mm
  • Wheelbase: 1380 mm
  • Weight (empty): 163 kg
  • perm. total weight: 340 kg
  • Performance (PS): 25 PS
  • Performance (kW): 19.4 kW
  • at rpm: 7500
  • Torque: 27.3 Nm
  • Top speed: 127 km/h
  • Engine type: 4-stroke internal combustion engine
  • Engine manufacturer: PIAGGIO
  • Engine number: MD38M
  • position of engine number: on the Crankcase below the shock absorber mounting

Engine - cylinders, clutch & exhaust

  • Displacement: 309 ccm
  • Bore: 75 mm
  • Stroke: 70.1 mm
  • Number of cylinders: 1
  • Number of valves per cylinder (4-stroke): 4
  • Type of cooling: Liquid
  • Compression: 11:1
  • Oil supply: 1300ml SAE 0W-30
  • Starter: Electric starter
  • Clutch: Centrifugal clutch
  • Clutch type: Ø 125mm 3 jaws
  • Emission standard: Euro 5+

Engine - Carburetor

  • Mixture preparation: Injection

Engine - Transmission

  • Type of gearbox: Automatic
  • Variator: CVT drive 6 rollers
  • Variator weights: add if known

Engine - Ignition

  • Ignition type: Electronic Ignition
  • Spark plug type: NGK MR7BI-8

Chassis - tires and rims

  • Front tyre(s): 120/70-12
  • Front rim(s): 3.00x12
  • Rear tyre(s): 130/70-12
  • Rear rim(s): 3.00x12
  • Front tyre pressure: 1,8
  • Rear tyre pressure: 2,0 - 2,2

Chassis - Brakes

  • Brake system: front: Disc Brake / Rear: Disc Brake
  • Front brake: Brake Disc: 220 mm Pads: S74
  • Front brake operation: fully hydraulic
  • Rear brake: Brake Disc: 220 mm Pads: S62
  • Rear brake operation: fully hydraulic

Chassis - steering column & swing arm

  • Front wheel guide: short swing arm with one arm
  • Rear wheel guide: Drive set swing arm
  • Front suspension: Shock Absorber L 230 mm, integrated Springs
  • Rear suspension: 2x Shock Absorbers L 320 mm, integrated Springs

Electronics

  • Battery voltage: 12 V
  • Battery: YTX14-BS
  • Battery capacity: 12 Ah
  • Headlights: LED
  • Parking light: LED
  • Speedometer light: LED
  • Light control: LED
  • Taillights: LED
  • Brake lights: LED
  • Indicator lights: LED
  • Horn: 12V DC

Operating materials

  • Fuel tank capacity: 8.5 l
  • Included reserve: 1.5 l
  • Range (approx.): 266 km
  • Gearbox oil: SAE 80W-90
  • Amount of gearbox oil: 0.25 l
  • CO2 emission: 74g/km
  • Fuel consumption: 3.2 l/100km

Explosion for this vehicle type

Spare parts exploded views

Spare parts exploded views

Our online exploded views for scooters make it much easier for you to find the right part. Each item is assigned exactly to the corresponding vehicle, with year of manufacture and chassis number. From our Expo lists, you can navigate directly to the spare parts, where a photo and a description are then available for almost every part. Conversely, you can also navigate from the item detail to the corresponding exploded view.
