ET2 50 ccm 2T AC '96-'02 ZAPC16000

VESPA ET2 50 ccm 2T AC '96-'02 ZAPC16000

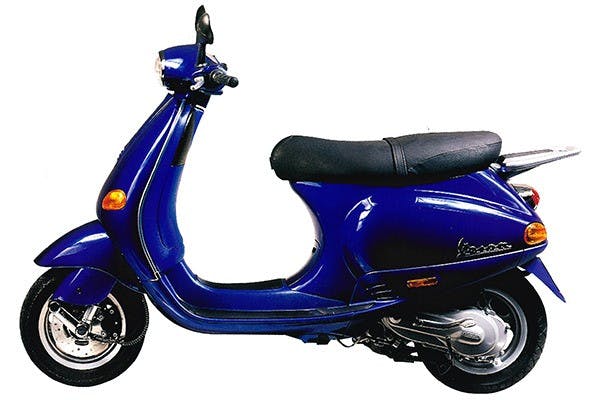

Photo from VESPA ET2 50 ccm 2T AC '96-'02 ZAPC16000 | MODERN VESPA

Overview Vespa 50 ET2

The new generation of automatic Vespa, which we also like to call the Modern Vespa, began in 1996 with the Vespa ET series.

Vespa 50 ET2 model history

The ET models are still very popular with their owners today. This is probably not only due to their shape and manoeuvrability, but also to their durability or simply the fact that you didn't have to adjust your helmet to the size of the Helmet Case. GTS riders know what we are talking about. These models utilised the engines already used in PIAGGIO and Gilera vehicles, which were also very popular in the Vespa.

The Engine of the Vespa 50 ET2

The following engines and displacements were installed in the respective models and also gave them their names:

  • ET2: 50 cc two-stroke engine of the 1st generation with Carburettor

  • ET2 Iniezione: 50 cc two-stroke engine with Fuel Injection Module

  • ET4 125 "old": 125 cc four-stroke engine of the 1st generation with Gauge Glass on the Oil Pan

  • ET2 (2nd generation): 50 cc two-stroke engine (HY-PER2) Euro2 with Carburettor and Catalytic Converter

  • ET4 50: 50 cc four-stroke engine with constant-pressure carburettor

  • ET4 125 "Leader": 125 cc 2nd generation Leader four-stroke engine with constant-pressure carburettor

  • ET4 150 "Leader": 150 cc 2nd generation Leader four-stroke engine with constant-pressure carburettor

The favourite among the 50 cc models was clearly the carburettor version of the two-stroke engine. The simple design of the air-cooled Engine with its simultaneously effective CVT transmission ensured a low-maintenance and low-wear overall concept, which also laid the foundation for a long-lasting insert in numerous successor models. Even though the new and innovative technology of the fuel-injected model seemed very interesting and promising at the time, it was ultimately unable to establish itself, probably also for cost reasons, as the more complex design of the small two-stroke engine was undoubtedly more expensive for the manufacturer to produce. In many countries, the less powerful 50 cc four-stroke version could hardly prevail against the much livelier two-stroke, which is why you rarely saw an ET4 50 cc on the roads in Germany, for example.
A distinction is made between M04 and M19, colloquially also known as "old" and "leader", for the large versions of the ET models. The early 125 cc PIAGGIO engines in the ET4 were reliable, but had various problems, such as high oil consumption or Elevation of noise in the valve train. The years of manufacture of the early version are limited to the period 1997 to 1999.
These defects were remedied with the next generation of 125/150 cc Leader engines. The ET4 also relied on the proven fan cooling system for these Engines, which was perfectly adequate. The first Euro2 standards were implemented from 2004. Although the 2nd generation of the ET4 was only introduced in 2000, it was already replaced by its successor, the Vespa LX, in 2006.

Used Vespa 50 ET2 market situation

Where do you look for this vehicle?

The colours of the Vespa 50 ET2

Colour

Colour Name

Max Meyer Code

Colour info

nero-94

Nero

94

1996-2004

alabastro-208

Alabastro Volterra

208

1996-1998

giallo-siena-947

Giallo Siena

947

1996

blu-livorno-216

Blu Livorno

216

1996

rosso-firenze-845

Rosso Firenze

845

1996-1998

grigio-moonlight-729

Grigio Moonlight

729

1998-2000

verde-carducci-329

Verde Carducci

329

1998

bianco-capodimonte-913

Bianco Capodimonte

913

1999-2000

bleu-cobalto-251

Blu Cobalto

251

1999-2004

Lavanda

623

1999

rosso-hippi-876

Rosso Hippy

876

1999

cielo-270

Cielo

270

1999-2000

Giada

386

2000

polvere-oro-568

Polvere d'oro

568

2000

perla-693

Perla

693

2000-2004

grigio-platino-686

Grigio Platino

686

2003

rosso-dragon-894

Rossa Dragon

894

2003

grigio-exkalibur-738-a

Grigio Excalibur

738/A

2004

azzurro-aurora-422

Azzurro Aurora

422

2004

Sources

General Information

  • Producer VESPA
  • Model ET2
  • Displacement 50 ccm
  • Cycles and cooling 2T / AC
  • Year of construction `96-`02
  • Type ZAPC16000
  • Dimension MODERN VESPA
  • Vehicle type Vespa ET2/ET4 50

Years of production & chassis numbers

  • Year of construction:

Technical data

  • Chassis type: self-supporting steel frame
  • Chassis number position: behind the Helmet Case to the battery plate
  • Length: 1780 mm
  • Width: 710 mm
  • Height: 1100 mm
  • Seat height: 780 mm
  • Wheelbase: 1260 mm
  • Weight (empty): 98 kg
  • perm. total weight: 290 kg
  • Performance (PS): 4.2 PS
  • Performance (kW): 3.1 kW
  • at rpm: 6250
  • Torque: 4.8 Nm
  • Top speed: 50 km/h
  • Engine type: 2-stroke internal combustion engine
  • Engine manufacturer: PIAGGIO
  • Engine number: C161M
  • position of engine number: on the Crankcase below the shock absorber mounting

Engine - cylinders, clutch & exhaust

  • Displacement: 49.5 ccm
  • Bore: 40 mm
  • Stroke: 39.3 mm
  • Number of cylinders: 1
  • Transfer ports: 3
  • Type of cooling: Air
  • Compression: 10,3:1
  • Starter: Kickstarter & electric starter
  • Clutch: Centrifugal clutch
  • Clutch type: Ø 107mm 3 jaws

Engine - Carburetor

  • Mixture preparation: Carburetor
  • Type of carburetor: Weber 12 OM
  • Main jet: 76
  • Mixing tube: G4
  • Idle jet: 34
  • Choke jet: 50

Engine - Transmission

  • Type of gearbox: Automatic
  • Variator: CVT drive 6 rollers
  • Variator weights: 19.0x15.5mm 8.0g

Engine - Ignition

  • Ignition type: Electronic Ignition
  • Spark plug type: CHAMPION RN3C
  • Spark plug thread: long thread

Chassis - tires and rims

  • Front tyre(s): 100/80-10
  • Front rim(s): 2.50x10
  • Rear tyre(s): 120/70-10
  • Rear rim(s): 3.00x10
  • Front tyre pressure: 1,6
  • Rear tyre pressure: 2,0

Chassis - Brakes

  • Brake system: front: Disc Brake / Rear: Drum Brake
  • Front brake: Brake Disc: 200 mm Pads: S14
  • Front brake operation: fully hydraulic
  • Rear brake: Ø inside 110 mm pad width: 25 mm
  • Rear brake operation: mechanical with Cable

Chassis - steering column & swing arm

  • Front wheel guide: short swing arm with one arm
  • Rear wheel guide: Drive set swing arm
  • Front suspension: Shock Absorber L 210 mm, integrated Springs
  • Rear suspension: Shock Absorber L 290 mm, integrated Springs

Electronics

  • Battery voltage: 12 V
  • Battery: YB4L-B
  • Battery capacity: 4 Ah
  • Headlights: 12V 35/35W BA20d
  • Parking light: 12V 5W W2,1x9,5d
  • Speedometer light: 12V 1.2W W2x4.6d
  • Light control: 12V 1.2W W2x4.6d
  • Taillights: 12V 5W BAY15d
  • Brake lights: 12V 21W BAY15d
  • Indicator lights: 12V 10W BA15s
  • Horn: 12V DC

Operating materials

  • Fuel tank capacity: 8.6 l
  • Mixing ratio: 1:50
  • Gearbox oil: SAE 90
  • Amount of gearbox oil: 0.075 l
  • CO2 emission: 109g/km
  • Fuel consumption: 4.6 l/100km

Further technical details / features

  • Info:

    The Vespa ET series marked the start of the new generation of automatic Vespas, which we also like to call Modern Vespas.

    In these models, the same Engines used in the PIAGGIO and Gilera vehicles were used, which also enjoyed great popularity in the VESPA.

    The following Engines and Harnesses were installed in the corresponding models and also gave the respective model its name:

    • ET2: 50cc two-stroke engine of the 1st generation with Carburettor

    • ET2 Iniezione: 50cc two-stroke engine with single-point module

    • ET4 125 "old": 125cc four-stroke engine of the 1st generation Engine with Gauge Glass on the Oil Pan

    • ET2: 50cc two-stroke engine of the 2nd generation (HY-PER2) Euro2 with Carburettor and Cat.

    • ET4 50: 50cc four-stroke engine with constant-pressure carburettor

    • ET4 125 "Leader": 125cc Leader four-stroke engine of the 2nd generation with equal-pressure carburettor

    • ET4 150 "Leader": 150cc Leader four-stroke engine of the 2nd generation with constant-pressure carburettor

    The favourite among the 50cc models was clearly the carburettor version of the two-stroke engine. The simple design of the air-cooled Engine with its simple yet effective CVT transmission made for a very maintenance-friendly and low-wear overall concept, which also laid the foundation for a long-lasting insert in numerous successor models.

    Even though the new and innovative technology of the fuel-injected model seemed very interesting and promising at the time, this concept unfortunately did not catch on. Presumably also for cost reasons, as the more complex design of the small two-stroke engine was certainly more expensive for the manufacturer to produce.

    In many countries, the small and sluggish 50cc four-stroke version was hardly able to assert itself against the much more lively two-stroke, which is why you hardly ever saw an ET4 50cc on the roads in Germany, for example.

    In the large versions of the ET models, a distinction is made between M04 and M19, or colloquially between "old" and "leader". The early 125cc PIAGGIO engines in the ET4 were reliable, but had various problems such as high oil consumption or increased noise in the valve train. The years of manufacture of the early version are limited to the period 1997 - 1999

    These defects were remedied with the next generation of 125/150cc Leader engines. The ET4 also relied on the proven fan cooling system for these Engines, which was perfectly adequate. The first Euro2 standards were then implemented from 2004. Even though the 2nd generation of the ET4 was only introduced in 2000, it was already replaced by its successor, the Vespa LX, in 2006.

    To this day, the ET models are still very popular with their owners, not only because of their shape and manoeuvrability, but also because of their durability or simply because you don't have to adjust your helmet to the size of the Helmet Case. GTS riders know what I'm talking about ;-)
