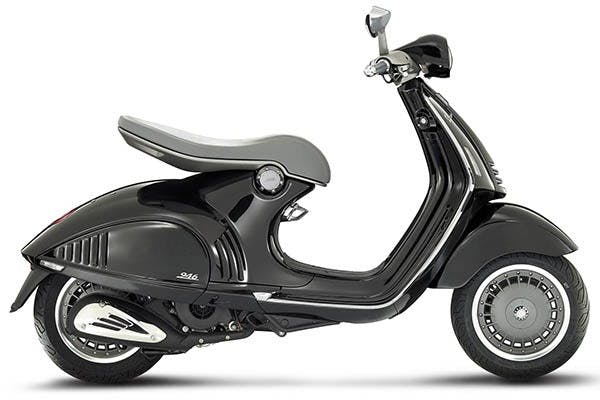

Photo from VESPA 946 i.e. 3V Euro4 125 ccm 4T AC '16-'17 ZAPM80101 | MODERN VESPA

Overview Vespa 946

Piaggio unveiled a new engine series in 2011 with the Vespa Quarantasei design study, which is reminiscent of the first Vespa, the MP6 from 1946. The chassis of the Vespa 946 is made of sheet steel, while parts such as the front Mudguard, Handlebar and side covers are made of aluminium alloy. A horizontally mounted gas spring element (monoshock) is installed in the rear axle. The model also has an anti-lock braking system (ABS) and traction control (ASR). The Headlight Unit relies entirely on LED technology.

Vespa 946 model history

The aesthetic concept of the Vespa 946 was developed by the Piaggio design team consisting of Marco Lambri, Mirko Zocco and Marco Canepa at the Piaggio Design Centre. Inspired by the idea of what a Vespa might look like in 2020, they created a design approach for the 946 that is both radical and clear. The 946 combines modern elements with allusions to the brand's rich history. For example, it takes up the design of the "low tail" of the historic Vespa MP6 and integrates a floating Single Seat reminiscent of the traditional Single Saddles.
In 2013, the Vespa 946 was launched on the market at a price of 9,000 euros in white and black colour variants. This edition, which ran under the name Ricordo Italiano and was limited to a quantity of 3,600 vehicles, reserved 300 units for the German market and 200 for the Austrian market, with only the 125 cc model being offered. Production of these vehicles took place in May 2013.
It was planned that the Vespa 946 would be released in a new edition every year, with different colours planned for each year. Colours used once were not to be repeated, so that the colour of each model provided information about the year of manufacture. The name of the respective edition was engraved on the metal cover on the right under the Single Seat as a special detail. Special editions with slightly different equipment features were also planned. For example, the Belissima special model had a shortened Single Seat, but could be extended to include a seat for a passenger, and also came with a Luggage Carrier.

In 2023, Piaggio launched a new series of the Vespa 946 and has since used the Asian lunar calendar to bring the so-called "Lunar Collection" onto the market. The Year of the Rabbit marked the start of these limited-edition scooters, followed by the Year of the Dragon in 2024 and finally the Year of the Snake in 2025. Production of this scooter series is set to continue until 2034.

The Engine of the Vespa 946

The engines are air-cooled three-valve four-stroke engines with a capacity of 125 and 150 cc. They were inserted in the Vespa LX from 2012 and were later also installed in other Piaggio scooters. The Vespa 946 model, which is suitable for everyday use, was presented at the EICMA 2012 and uses these already familiar engines.

Used Vespa 946 market situation

Where do you look for this vehicle?

General Information

  • Producer VESPA
  • Model 946 i.e. 3V Euro4
  • Displacement 125 ccm
  • Cycles and cooling 4T / AC
  • Year of construction ''16-''17
  • Type ZAPM80101
  • Chassis number (from/to) ZAPM80101
  • Dimension MODERN VESPA
  • Vehicle type Vespa Primavera/Sprint/946 125-150

Years of production & chassis numbers

  • Year of construction:

Technical data

  • Chassis type: self-supporting steel frame
  • Chassis number position: under the Seat in front of the fuel filler neck
  • Length: 1965 mm
  • Width: 730 mm
  • Height: 1170 mm
  • Wheelbase: 1405 mm
  • Weight (empty): 153 kg
  • perm. total weight: 340 kg
  • Performance (PS): 11.6 PS
  • Performance (kW): 8.5 kW
  • at rpm: 8750
  • Torque: 9.8 Nm
  • Top speed: 93 km/h
  • Engine type: 4-stroke internal combustion engine
  • Engine manufacturer: PIAGGIO
  • Engine number: M801M
  • position of engine number: on the Crankcase below the shock absorber mounting

Engine - cylinders, clutch & exhaust

  • Displacement: 124 ccm
  • Bore: 52 mm
  • Stroke: 58.6 mm
  • Number of cylinders: 1
  • Number of valves per cylinder (4-stroke): 3
  • Type of cooling: Air
  • Compression: 10,5:1
  • Oil supply: 1340ml SAE 5W-40
  • Starter: Electric starter
  • Clutch: Centrifugal clutch
  • Clutch type: Ø 134mm 3 jaws
  • Emission standard: Euro4

Engine - Carburetor

  • Mixture preparation: Injection

Engine - Transmission

  • Type of gearbox: Automatic
  • Variator: CVT drive 6 rollers
  • Variator weights: 19.0x17.0mm 13.0g

Engine - Ignition

  • Ignition type: Electronic Ignition
  • Spark plug type: NGK CR8EB

Chassis - tires and rims

  • Front tyre(s): 120/70-12
  • Front rim(s): 3.00x12
  • Rear tyre(s): 130/70-12
  • Rear rim(s): 3.00x12
  • Front tyre pressure: 1,8
  • Rear tyre pressure: 2,0

Chassis - Brakes

  • Brake system: front: Disc Brake / Rear: Disc Brake
  • Front brake: Brake Disc: 220 mm Pads: S51
  • Front brake operation: fully hydraulic
  • Rear brake: Brake Disc: 220 mm Pads: S52
  • Rear brake operation: fully hydraulic

Chassis - steering column & swing arm

  • Front wheel guide: short swing arm with one arm
  • Rear wheel guide: Drive set swing arm

Electronics

  • Battery voltage: 12 V
  • Battery: YT12B-BS (W)
  • Battery capacity: 10 Ah
  • Headlights: LED
  • Parking light: LED
  • Speedometer light: LED
  • Light control: LED
  • Taillights: LED
  • Brake lights: LED
  • Indicator lights: LED
  • Horn: 12V DC

Operating materials

  • Fuel tank capacity: 8.5 l
  • Included reserve: 1.5 l
  • Gearbox oil: SAE 80W-90
  • Amount of gearbox oil: 0.3 l
