VESPA 946 i.e. 3V 4T Emporio Armani Euro3 125 ccm 4T AC '15 ZAPM80101

Overview Vespa 946 Emporio Armani

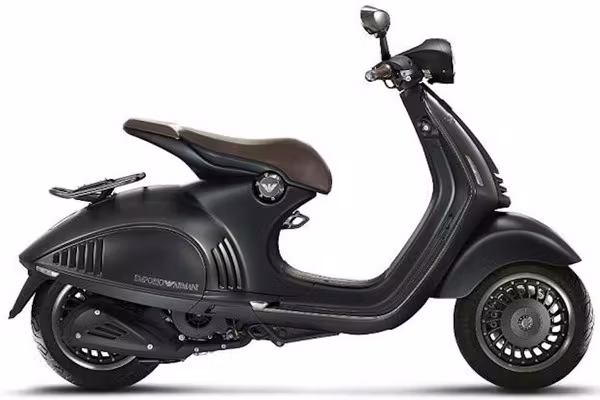

To celebrate the 40th anniversary of Emporio Armani and the 130th anniversary of the Piaggio Group in 2015, Armani created a special version of the Vespa 946. For this model, the designer chose a unique colour palette of shades of grey with a subtle green tone that is only visible under certain lighting conditions. The metallic elements were given a satin galvanic treatment to create a matt effect that harmonises with the bodywork finish. The "Emporio Armani" Badge is emblazoned on the side of the scooter and the familiar eagle logo adorns the area above the front headlight.

General Information

Producer VESPA
Model 946 i.e. 3V 4T Emporio Armani Euro3
Displacement 125 ccm
Cycles and cooling 4T / AC
Year of construction ''15
Type ZAPM80101
Chassis number (from/to) ZAPM80101
Dimension MODERN VESPA
Vehicle type Vespa Primavera/Sprint/946 125-150

Years of production & chassis numbers

Year of construction:

Technical data

Chassis type: self-supporting steel frame
Chassis number position: under the Seat in front of the fuel filler neck
Length: 1965 mm
Width: 730 mm
Height: 1170 mm
Wheelbase: 1405 mm
Weight (empty): 153 kg
perm. total weight: 340 kg
Performance (PS): 11.6 PS
Performance (kW): 8.5 kW
at rpm: 8750
Torque: 9.8 Nm
Top speed: 93 km/h
Engine type: 4-stroke internal combustion engine
Engine manufacturer: PIAGGIO
Engine number: M801M
position of engine number: on the Crankcase below the shock absorber mounting

Engine - cylinders, clutch & exhaust

Displacement: 124 ccm
Bore: 52 mm
Stroke: 58.6 mm
Number of cylinders: 1
Number of valves per cylinder (4-stroke): 3
Type of cooling: Air
Compression: 10,5:1
Oil supply: 1340ml SAE 5W-40
Starter: Electric starter
Clutch: Centrifugal clutch
Clutch type: Ø 134mm 3 jaws
Emission standard: Euro3

Engine - Carburetor

Mixture preparation: Injection

Engine - Transmission

Type of gearbox: Automatic
Variator: CVT drive 6 rollers
Variator weights: 19.0x17.0mm 13.0g

Engine - Ignition

Ignition type: Electronic Ignition
Spark plug type: NGK CR8EB

Chassis - tires and rims

Front tyre(s): 120/70-12
Front rim(s): 3.00x12
Rear tyre(s): 130/70-12
Rear rim(s): 3.00x12
Front tyre pressure: 1,8
Rear tyre pressure: 2,0

Chassis - Brakes

Brake system: front: Disc Brake / Rear: Disc Brake
Front brake: Brake Disc: 200 mm pads: S51
Front brake operation: fully hydraulic
Rear brake: Brake Disc: 220 mm Pads: S52
Rear brake operation: fully hydraulic

Chassis - steering column & swing arm

Front wheel guide: short swing arm with one arm
Rear wheel guide: Drive set swing arm

Electronics

Battery voltage: 12 V
Battery: YT12B-BS
Battery capacity: 10 Ah
Headlights: LED
Parking light: LED
Speedometer light: LED
Light control: LED
Taillights: LED
Brake lights: LED
Indicator lights: LED
Horn: 12V DC

Operating materials

Fuel tank capacity: 8 l
Included reserve: 1.5 l
Gearbox oil: SAE 80W-90
Amount of gearbox oil: 0.3 l

Explosion for this vehicle type

Our online exploded views for scooters make it much easier for you to find the right part. Each item is assigned exactly to the corresponding vehicle, with year of manufacture and chassis number. From our Expo lists, you can navigate directly to the spare parts, where a photo and a description are then available for almost every part. Conversely, you can also navigate from the item detail to the corresponding exploded view.
