VESPA 90 Racer 90 cc 2T AC '71-'74 V9SS2T

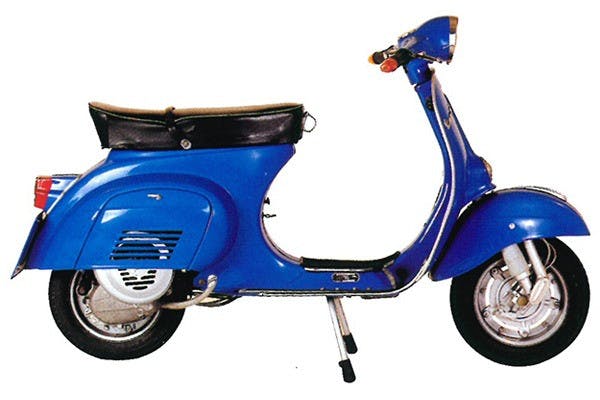

Overview Vespa 90 Racer
The Vespa 90 Racer was produced as the successor model to the legendary Vespa 90 SuperSprint from 1971 to 1974 in a limited edition of just 3515 units.
Vespa 90 Racer model history
In the general hype that has surrounded the Super Sprint in recent years, the actually much rarer scooter has hardly attracted any attention, which is probably due to its inconspicuous appearance. The bodywork was identical to that of the Vespa 125 Primavera apart from the missing Glovebox. Only small details such as the Badge on the Legshield, the Sticker on the rear and the distinctive Exhaust labelled the Racer as such.
The Engine of the Vespa 90 Racer
The Engine was identical to that of the Vespa 90 SS, but bore the engine number V9SS2M.
Used Vespa 90 Racer market situation
Where are you looking for this vehicle?
At your trusted Vespa dealer
Classified adverts in the local newspaper
Markets and trade fairs such as Mostra Scambis in Italy
Online marketplaces such as www.mobile.de, www.autoscout24.de etc.
The colours of the Vespa 90 Racer:
Colour | Colour Name | Max Meyer Code | Colour info |
|---|---|---|---|
 | Blu | 226 | |
 | Biancospino | 1.298.1715 | Export |
 | Rosso Canyon | 1.298.5921 | |
 | Rosso Corsa | 1.298.5806 | 1973 |
 | Rosso Corsa 847 | 1.298.5847 |
Sources
General Information
- Producer VESPA
- Model 90 Racer
- Displacement 90 ccm
- Cycles and cooling 2T / AC
- Year of construction `71-`74
- Type V9SS2T
- Chassis number (from/to) 7001 - 10516
- Dimension KLASSIK VESPA
- Vehicle type Vespa 50-125/PV/ET3/PK/XL
Years of production & chassis numbers
-
Year of construction:
Technical data
- Chassis type: self-supporting steel frame
- Chassis number position: at the rear right at the height of the Lock Lever Side Panel Door, German models also have a Type Plate on the tunnel on the right
- Length: 1650 mm
- Width: 610 mm
- Height: 1000 mm
- Seat height: 780 mm
- Wheelbase: 1160 mm
- Ground clearance: 225 mm
- Weight (empty): 82 kg
- perm. total weight: 222 kg
- Turning circle: 1650 mm
- Performance (PS): 5.8 PS
- Performance (kW): 3.8 kW
- at rpm: 6000
- Top speed: 86 km/h
- Engine type: 2-stroke internal combustion engine
- Engine manufacturer: PIAGGIO
- Engine number: V9SS2M
- position of engine number: on the Crankcase below the shock absorber mounting
Engine - cylinders, clutch & exhaust
- Displacement: 88.5 ccm
- Bore: 47 mm
- Stroke: 51 mm
- Number of cylinders: 1
- Transfer ports: 2
- Type of cooling: Air
- Compression: 8,7:1
- Starter: Kickstarter
- Clutch: Multi-disc clutch in oil bath on Input Shaft
- Clutch type: 3 Clutch Friction Plates, 1 centre spring
- Stationary noise: 71 dB(a)
- Driving noise: 78 dB(a)
Engine - Carburetor
- Mixture preparation: Carburetor
- Type of carburetor: Dell'Orto SHB 16.16
- Main jet: 80
- Idle jet: 38
- Choke jet: 50
Engine - Transmission
- Type of gearbox: Manual gearstick
- Number of gears: 4
- Gear rotation: 1st gear: 10:58 Z (5,80)
- Gear rotation: 2nd gear: 14:54 Z (3,86)
- Transmission: 3rd gear: 18:50 Z (2,78)
- Transmission: 4th gear: 22:46 Z (2,09)
- Gear rotation: Total: im 4. Gang: 5,31
- Transmission: Primary: 24:61 Z (2,54)
Engine - Ignition
- Ignition type: Interruptor ignition
- Ignition timing: 19 °
- Charging power (ignition): 50 W
- Spark plug type: BOSCH W4CC / NGK B8ES
- Spark plug thread: short thread
- Pre-ignition timing: 19
Chassis - tires and rims
- Front tyre(s): 3.00x10
- Front rim(s): 2.10x10
- Rear tyre(s): 3.00x10
- Rear rim(s): 2.10x10
- Front tyre pressure: 1,6
- Rear tyre pressure: 2,3 - 2,5
Chassis - Brakes
- Brake system: Drum Brake
- Front brake: Ø inside 125 mm
- Front brake operation: mechanical with Cable
- Rear brake: Ø inside 150 mm lining width: 24 mm
- Rear brake operation: mechanical with Cable
Chassis - steering column & swing arm
- Front wheel guide: short swing arm with one arm
- Rear wheel guide: Drive set swing arm
- Front suspension: Shock Absorber L 200 mm, integrated Springs
- Rear suspension: Shock Absorber L 340 mm, integrated Springs
Electronics
- Alternator: 6 Volt - 50 Watt, swing light magneto ignition
- Headlights: 6V 25/25W BA20d
- Parking light: 6V 5W
- Speedometer light: 6V 0.6W BA7s
- Taillights: 6V 5W Festoon Bulb
- Brake lights: 6V 10W Festoon Bulb
- Indicator lights: 6V 18W (if available)
- Horn: 6V AC
Operating materials
- Fuel tank capacity: 5.6 l
- Included reserve: 1 l
- Mixing ratio: 1:50
- Range (approx.): 220 km
- Gearbox oil: SAE 30
- Amount of gearbox oil: 0.25 l
- Fuel consumption: 2.6 l/100km
