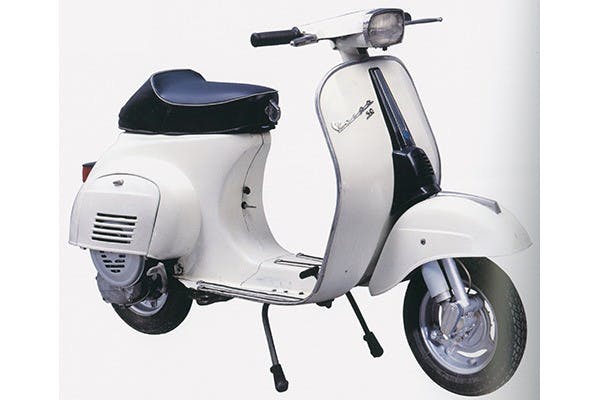

Overview Vespa 50 Special (V5B1)

Between 1969 and 1972, the first series of the Vespa 50 Special was manufactured with a 3-speed gearbox, while the third series was produced from 1972 to 1983 with a 4-speed gearbox. The first series was characterised by the antique, slanted Badge on the front and rear as well as 9-inch wheels, in contrast to the 10-inch wheels of the third series. Another recognisable feature of the Vespa was the trapezoidal Headlight Unit, which was set into a chrome-plated brass ring. In addition, the Horn was covered with a plastic panelling for the first time.

The Engine of the Vespa 50 Special

The same as on the Vespa 50L, but with an SHB 16/12 Carburettor from Dellorto.

Other Vespa 50 Special (2nd series / Italy)

• Three-speed engine with an externally mounted Ignition Coil

• Flywheel secured by a flanged nut and a Cluster Circlip, primary ratio of 4.19

• HT Lead with flat plug connection

• Wire connections inside the cable box fitted with ring terminals

• Two-line indication of the chassis number under the Engine Cover: with "DGM" at the top and frame prefix and chassis number underneath

• Ten-inch wheels with uncovered rims

• Brake Drum made of aluminium

• Hub Nut Covers made of sheet steel, fitted to both the front and rear wheels

• Centre Stand with a diameter of 20 mm

• Single seat bench, fitted with a Luggage Hook

• Initially two-line lettering "Vespa 50" in old, cursive lettering made of aluminium, riveted to the Legshield, later change to lettering in new font

• Rear lettering "Special" in old, cursive font up to a certain frame number, then change to "vespa 50" in new font

• Leg shield reinforcement in aluminium Beading design

• Floor Runners made of aluminium with recessed rubber profiles

• Front Cover (Horn Cover) made of light grey plastic

• Mudguard trim and Rear Light Cover also made of light grey plastic

• Elongated Steering Lock, fitted with a Cap

• From 1974, enlarged ball diameter on the thin Clutch and brake levers

• Clutch and Brake Lever fixed to the Handlebar with Phillips screws

• Black striped handlebar grips with hexagonal Piaggio logo

• Tank designed for Seating a seat post for Single Saddle

• Metal control lever for the Fuel Tap

Situation used market Vespa 50 Special

Where are you looking for this vehicle?

• At your trusted Vespa dealer

• Classified adverts in the local newspaper

• Markets and trade fairs such as Mostra Scambis in Italy

• Online marketplaces such as www.mobile.de, www.autoscout24.de etc.

The colours of the Vespa 50 Special (V5B1):

Colour	Colour Name	Max Meyer Code	Colour info
	Biancospino	1.298.1715	1972
	Rosso Corsa	1.298.5847	1972
	Azzurro Cina	1.298.7402	1973
	Rosso Corsa 806	1.298.5806	1973
	Verde Vallombrosa	1.298.6590	1974
	Grigio	8012M	Rust protection/primer
