VESPA 50 Revival 50 ccm 2T AC '90- V5R1T

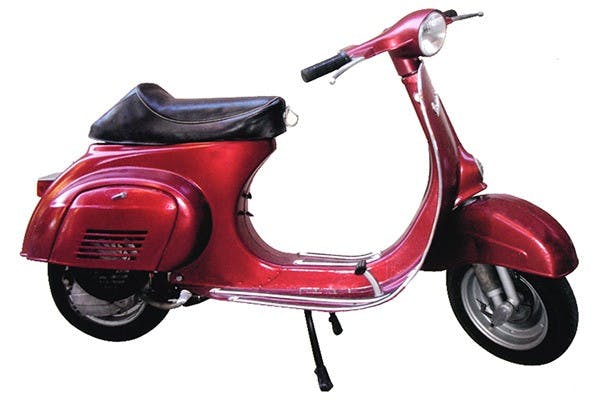

Photo from VESPA 50 Revival 50 ccm 2T AC '90- V5R1T | KLASSIK VESPA

Overview Vespa 50 Revival

The 50 Special Vespa, which was particularly popular with young people in the 1960s, underwent a revival in the early 1990s to appeal to both nostalgics and new generations. Recognised worldwide, it returned in 1991 in an exclusive, limited series of just 3,000 units to inspire those who had either missed the 1960s or were not yet in the world at the time. As an iconic product of our time, the 50 Special has found its honourable place in the Museum of Modern Art in New York and combines the past with the present.

The Engine of the Vespa 50 Revival

The Engine is the same as on the Model 50, equipped with three gears and two internal coils.

Situation on the used Vespa 50 Revival market

A very rare model for which high prices are paid. Where do you look for this vehicle?

Miscellaneous Vespa 50 Revival

  • Three-speed gearbox and external ignition unit

  • Plastic fan wheel with collar nut and Cluster Circlip for disassembly

  • Black covers for the Flywheel, similar to the Vespa 50 PK Models

  • Wiring organised in a cable box, fitted with plug connections

  • 10-inch tyres mounted on 4-hole rims, characteristic of older smallframe variants

  • Black Centre Stand with a diameter of 20 mm

  • Sporty Seat equipped with a Luggage Hook at the front

  • "Vespa" lettering in the old style as an aluminium relief on the Legshield, possibly riveted as on the first series

  • "Special" lettering in old Vespa typography made of aluminium at the rear above the Rear Light, with a design that differs from the first models

  • Protected aluminium edges

  • Floor Boards with aluminium strips and rubber inserts

  • Rear light with dark grey canopy, similar to the first four years of production of the Vespa 50 Special (V5A2T)

  • Simple sheet metal front panelling

  • Chrome-plated Horn with black Gasket Ring

  • Mudguard without decorative fin

  • Round handlebar lock with Covers

  • Brake and Clutch Lever with large Ball ends, similar to the ET3

  • Phillips screws for fixing the handlebar levers

  • Black hand grips with hexagonal Piaggio logo

  • Brake Pedal with square profile, matching the Vespa 50 PK

  • Handlebar in round light design without Chrome Ring

  • Round speedometer up to 80 km/h with white pointer

  • Switch and throttle cables inside the handlebars made of plastic

  • Tank painted in black instead of the frame colour

  • Fuel Tap Lever with plastic handle

  • Dark grey Tool Box

  • Sticker with limited edition serial number on the inside of the left Legshield

The colours of the Vespa 50 Revival:

Colour

Colour Name

Max Meyer Code

Colour info

rosso-metallizzato-8-6

Rosso Metallizzato

PM 8/6

grigio-metallizzato-2-6

Grigio Metallizzato

PM 2/6

blu-metallizato-5-7

Blue Metallizzato

PM 5/7

Biancospino

1.298.1715

alluminio-1-268-0983

Alluminio

1.268.0983

various Frame Parts

Sources

General Information

  • Producer VESPA
  • Model 50 Revival
  • Displacement 50 ccm
  • Cycles and cooling 2T / AC
  • Year of construction `90-
  • Type V5R1T
  • Chassis number (from/to) 0001101 - 0004494
  • Built quantity 3394
  • Dimension KLASSIK VESPA
  • Vehicle type Vespa 50-125/PV/ET3/PK/XL

Years of production & chassis numbers

  • Year of construction:

Technical data

  • Chassis type: self-supporting steel frame
  • Chassis number position: at the rear right at the height of the Lock Lever Side Panel Door, German models also have a Type Plate on the tunnel on the right
  • Length: 1655 mm
  • Width: 610 mm
  • Height: 1000 mm
  • Seat height: 780 mm
  • Wheelbase: 1180 mm
  • Ground clearance: 230 mm
  • Weight (empty): 75.5 kg
  • perm. total weight: 145.5 kg
  • Turning circle: 1400 mm
  • Performance (PS): 2.5 PS
  • Performance (kW): 1.8 kW
  • at rpm: 4800
  • Top speed: 45 km/h
  • Engine type: 2-stroke internal combustion engine
  • Engine manufacturer: PIAGGIO
  • Engine number: V5R1M
  • position of engine number: on the Crankcase below the shock absorber mounting

Engine - cylinders, clutch & exhaust

  • Displacement: 49 ccm
  • Bore: 38.4 mm
  • Stroke: 43 mm
  • Number of cylinders: 1
  • Transfer ports: 2
  • Type of cooling: Air
  • Compression: 7,2:1
  • Starter: Kickstarter
  • Clutch: Multi-disc clutch in oil bath on Input Shaft
  • Clutch type: 3 Clutch Friction Plates, 1 centre spring
  • Stationary noise: 65 dB(a)
  • Driving noise: 73 dB(a)

Engine - Carburetor

  • Mixture preparation: Carburetor
  • Type of carburetor: Dell'Orto SHB 16.10
  • Main jet: 51
  • Idle jet: 38
  • Choke jet: 50

Engine - Transmission

  • Type of gearbox: Manual gearstick
  • Number of gears: 4
  • Gear rotation: 1st gear: 10:60 Z (6,00)
  • Gear rotation: 2nd gear: 16:54 Z (3,38)
  • Transmission: 3rd gear: 22:47 Z (2,14)
  • Gear rotation: Total: im 3. Gang: 7,96
  • Transmission: Primary: 18:67 Z (3,72)

Engine - Ignition

  • Ignition type: Interruptor ignition
  • Ignition timing: 19 °
  • Charging power (ignition): 20 W
  • Spark plug type: NGK B7HS / Bosch W5AC
  • Spark plug thread: short thread
  • Pre-ignition timing: 19

Chassis - tires and rims

  • Front tyre(s): 3.00x10
  • Front rim(s): 2.10x10
  • Rear tyre(s): 3.00x10
  • Rear rim(s): 2.10x10
  • Front tyre pressure: 2,0
  • Rear tyre pressure: 2,2

Chassis - Brakes

  • Brake system: Drum Brake
  • Front brake: Ø inside 125mm lining width: 18 mm
  • Front brake operation: mechanical with Cable
  • Rear brake: Ø inside 135 mm pad width: 20 mm
  • Rear brake operation: mechanical with Cable

Chassis - steering column & swing arm

  • Front wheel guide: short swing arm with one arm
  • Rear wheel guide: Drive set swing arm
  • Front suspension: Shock Absorber L 200 mm, integrated Springs
  • Rear suspension: Shock Absorber L 340 mm, integrated Springs

Electronics

  • Battery: none
  • Alternator: 6V - 35W, swing light magneto ignition
  • Headlights: 6V 25/25W BA20d
  • Parking light: 6V 5W BA15s
  • Taillights: 6V 5W Festoon Bulb
  • Brake lights: 6V10W (if available)
  • Horn: 6V AC

Operating materials

  • Fuel tank capacity: 5.6 l
  • Included reserve: 1 l
  • Mixing ratio: 1:50
  • Range (approx.): 350 km
  • Gearbox oil: SAE 30
  • Amount of gearbox oil: 0.25 l
  • Fuel consumption: 1.53 l/100km
