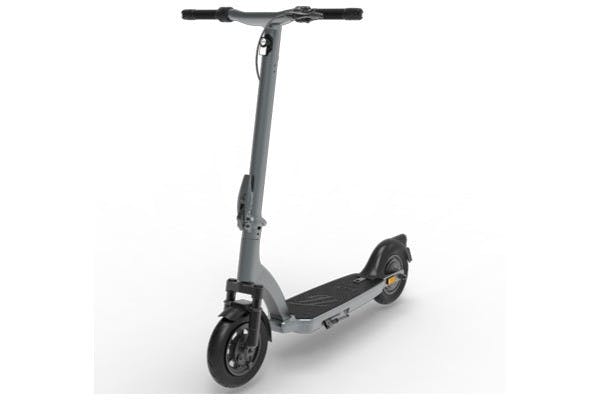

TRITTBRETT Sultan '23- 20 km/h

Overview Footboards E-Scooter Sultan

The E-Scooter Sultan, developed by TRITTBRETT, the renowned manufacturer from the Ruhr area, impresses with its powerful 500 W Engine and rear-wheel drive. With its numerous innovative features and excellent price/performance ratio, the E-Scooter Sultan is undoubtedly one of the most desirable means of transport. The E-Scooter Sultan, which is equipped with a general operating licence (ABE) in accordance with the German Ordinance on Small Electric Vehicles (eKFV), also complies with the German Road Traffic Licensing Regulations (StVZO). Particularly noteworthy is its control system, which is operated via a convenient thumb throttle.

Features Footboards E-Scooter Sultan

Powerful battery: The scooter has a 15,000 mAh battery and a 36 V system, which enables a range of up to 60 km.

Lightweight frame: The frame is made of high-performance aluminium, similar to that used in the aviation industry, which makes the scooter very light at just 19 kg. This material is corrosion resistant and ideal for durability in various conditions.

Powerful Engine: Equipped with a 500 W rear engine and a 36 V system, the scooter offers fast and environmentally friendly locomotion, ideal for gradients of up to 20 %.

Innovative motor brake: The Power RBS braking system utilises kinetic energy during braking to convert it into electrical energy, which in turn is fed into the Battery.

Newly developed folding mechanism: A revised clip-in hook system with integrated fuse makes folding the scooter easier.

Bright front light: A 500 lumen front light ensures safe night-time riding.

Anti-flat Tyre System: Tubeless 10" tyres with self-healing properties minimise the likelihood of punctures.

Integrated Indicators: Indicators in the Handlebar increase safety through improved visibility.

Dual front suspension: Similar to mountain bikes, this technology absorbs shocks and improves stability.

Hobbywing Controller: High-quality controller for high efficiency and low energy consumption.

General Information

Producer TRITTBRETT
Model Sultan
Year of construction 2023
Type 20 km/h
Dimension E-SCOOTER
Vehicle type E-Scooter

Years of production & chassis numbers

Year of construction:

Technical data

Length: 1100 mm
Width: 470 mm
Height: 1205 mm
Product dimensions: L: 110 cm W: 47 cm H: 120.5 cm
Engine type: Rear-wheel drive
Engine performance: 36 V / 500 W
Rechargable battery size: 36 V / 15 ah
Charging time: 6 h
Range (approx.): 60 km
Speed: 20 km/h
Climb incline: 36.4 %
Acceleration: adjustable in 2 acceleration levels
IP rating: IP66
max. carrying capacity: 120 kg
Product weight: 19 kg
Wheels: 10 inch CST tubeless pneumatic tyres with anti-flat system
Suspension: Dual suspension
Brakes: Front Drum Brake + separate engine brake with recuperation
Chassis material: Aircraft-grade aluminium
Foldable: yes
Display: LED colour display
Turn indicators: Bright and clearly visible Indicators integrated into the Handlebar
Front light: 500 lumen (20 LUX) bright front light
Back light: Rear Light with brake light function
Suitable age: from 14 years

Explosion for this vehicle type

Our online exploded views for scooters make it much easier for you to find the right part. Each item is assigned exactly to the corresponding vehicle, with year of manufacture and chassis number. From our Expo lists, you can navigate directly to the spare parts, where a photo and a description are then available for almost every part. Conversely, you can also navigate from the item detail to the corresponding exploded view.
