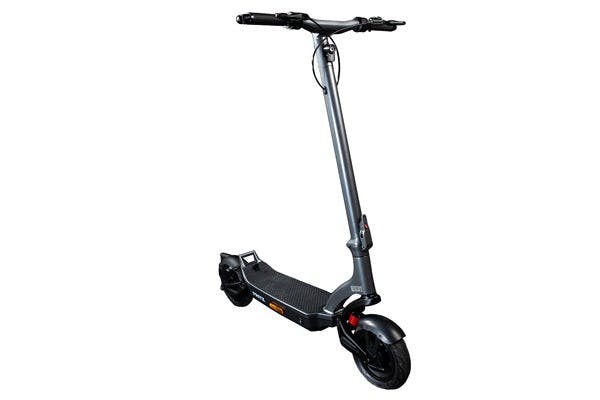

TRITTBRETT Fritz '23- 22 km/h

Overview Footboards E-Scooter Fritz

The FRITZ E-Scooter, a product from the popular manufacturer TRITTBRETT, was an inexpensive model that offered plenty of power and a long range despite its favourable price. Footboards broke new ground with the FRITZ in 2023 by relying exclusively on components from China for the first time. This decision made the FRITZ an E-Scooter that was attractive to a wide range of buyers due to its affordable price.

Features Footboards E-Scooter Fritz

Thanks to its 48-volt 500-watt Engine, the FRITZ offered an impressive range and represented excellent value for money. This combination made the FRITZ an affordable alternative on the E-Scooter market. With a battery capacity of 13.6 Ah, it achieved a range of 60 kilometres, while the larger 18.0 Ah battery enabled an even more impressive range of 80 kilometres.

E-Scooter TRITTBRETT FRITZ 13,5

General Information

Producer TRITTBRETT
Model Fritz
Year of construction '23-
Dimension E-SCOOTER
Vehicle type E-Scooter

Years of production & chassis numbers

Year of construction:

Technical data

Length: 1250 mm
Width: 620 mm
Height: 1300 mm
Product dimensions: L: 125 cm W: 62 cm H: 130 cm
Engine type: Electrical
Engine performance: 48 V / 500 W rear-wheel drive
Rechargable battery size: 18 Ah
Charging time: 3 h
Range (approx.): 80 km
Speed: 25 km/h
Climb incline: 46.6 %
Acceleration: adjustable in 2 stages (T= Turbo & D= Drive)
IP rating: IP65
max. carrying capacity: 140 kg
Product weight: 27.4 kg
Wheels: 10 inch CST tubeless pneumatic tyres with anti-flat system
Suspension: Full suspension front & rear
Brakes: Drum Brakes front & rear + engine brake with E-ABS
Chassis material: Aluminium
Foldable: yes
Display: LED Display
Turn indicators: no
Front light: 20 Lux
Back light: Rear Light with brake light function
Suitable age: from 14 years

Further technical details / features

Info:
- Own Footboards App
- Immobiliser integrated in App
- Indicators from Kellermann for retrofitting

Explosion for this vehicle type

Our online exploded views for scooters make it much easier for you to find the right part. Each item is assigned exactly to the corresponding vehicle, with year of manufacture and chassis number. From our Expo lists, you can navigate directly to the spare parts, where a photo and a description are then available for almost every part. Conversely, you can also navigate from the item detail to the corresponding exploded view.
