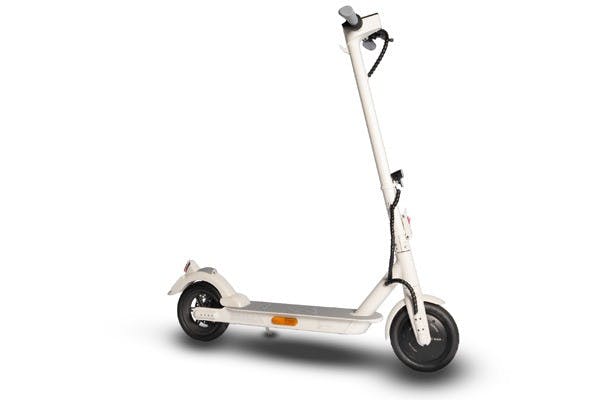

TRITTBRETT Emma '20- 20 km/h
General Information
- Producer TRITTBRETT
- Model Emma
- Year of construction `20-
- Type 20 km/h
- Dimension E-SCOOTER
- Vehicle type E-Scooter
Years of production & chassis numbers
-
Year of construction:
Technical data
- Length: 1100 mm
- Width: 470 mm
- Height: 1205 mm
- Product dimensions: L: 110 cm W: 47 cm H: 120.5 cm
- Engine performance: 36 V / 350 W
- Rechargable battery size: 7.800 mAh LG Battery
- Charging time: 3 h
- Range (approx.): 30 km
- Speed: 20 km/h
- max. carrying capacity: 120 kg
- Product weight: 14 kg
- Wheels: 8.5 inch tubeless pneumatic tyres
- Suspension: no suspension
- Brakes: 3 brakes Mechanical step brake (rear) Disc Brake (front) + engine brake with E-ABS
- Chassis material: Aluminium
- Foldable: yes
- Display: LED Display
- Turn indicators: no
- Front light: 30 Lux
- Back light: Rear Light with brake light function
- Suitable age: from 14 years
Explosion for this vehicle type
Spare parts exploded views
Our online exploded views for scooters make it much easier for you to find the right part. Each item is assigned exactly to the corresponding vehicle, with year of manufacture and chassis number. From our Expo lists, you can navigate directly to the spare parts, where a photo and a description are then available for almost every part. Conversely, you can also navigate from the item detail to the corresponding exploded view.
