SEGWAY-NINEBOT E22 E '20- 20 Km/h

Overview Segway-Ninebot E-Scooter E22E

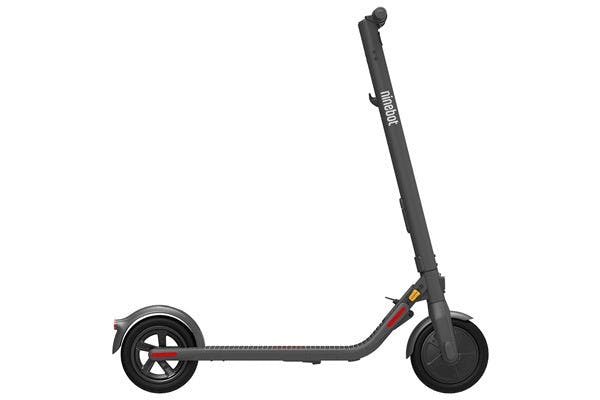

The SEGWAY-NINEBOT E22E was also a successor model to the very successful bestseller G30.

Features Segway-Ninebot E-Scooter E22D

Reinforced by an additional Battery, the SEGWAY-NINEBOT E22E was able to cope with gradients of up to 20%, achieved a maximum range of 45 kilometres and a top speed of 25 km/h under optimum conditions. With a weight of 13.5 kilograms, the E22E was light and easy to fold, making it an ideal companion for local public transport. Equipped with puncture-proof, foam-filled 9-inch Tyres, the E22E was particularly well suited to urban conditions. A front Shock Absorber also ensured a comfortable ride, even over cobblestones.
Reflectors and lights were provided for safety, as well as two brakes - an electronic regenerative brake at the front and a manual foot brake at the rear. The red-marked lever for the brakes was located directly on the Handlebar, while the throttle had a symbolic green marker.
The E22E's design was wireless, and all important information, such as speed and battery status, was shown on an LED display. Thanks to the Bluetooth interface, the E-Scooter could be connected to the SEGWAY-NINEBOT App.

General Information

Producer SEGWAY-NINEBOT
Model E22 E
Year of construction `20-
Type 20 Km/h
Dimension E-SCOOTER
Vehicle type E-Scooter

Years of production & chassis numbers

Year of construction:

Technical data

Length: 1160 mm
Width: 430 mm
Height: 1150 mm
Product dimensions: L: 116 cm W: 43 cm H: 115 cm
Engine type: 36 V / 300 W front-wheel drive
Engine performance: 36 V / 300 W
Rechargable battery size: LI-ION, 36 V 187 WH
Charging time: 3 h
Range (approx.): 45 km
Speed: 25 km/h
Climb incline: 15 %
Acceleration: 3 driving modes (Eco, Standard, Sport)
IP rating: IPX4
max. carrying capacity: 100 kg
Product weight: 13.5 kg
Wheels: 9 inch foam-filled, puncture-proof
Suspension: none
Brakes: Electric & regenerative brake (front) and stepped mudguard brake (rear)
Chassis material: Aluminium
Foldable: yes
Display: LED colour display
Turn indicators: no
Front light: LED
Back light: LED with brake light function
Signal: Bell
Suitable age: 14

Further technical details / features

Info:
- App connectivity
- Bluetooth
- Front, side E-MARK reflectors and rear Z-MARK reflectors
- Cruise control
