SEGWAY-NINEBOT E22 D '20- 20 Km/h

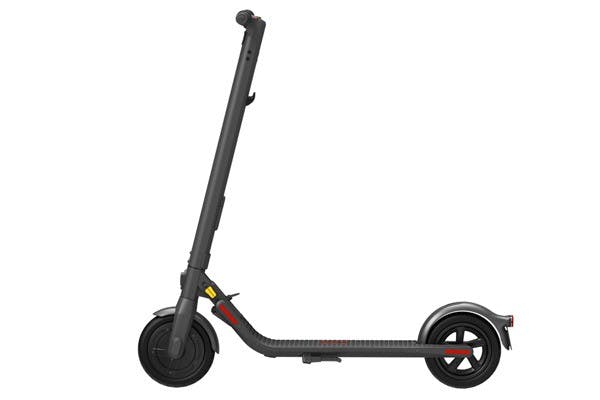

Overview Segway-Ninebot E-Scooter E22D
The SEGWAY-NINEBOT E22D was a successor model to the very successful bestseller G30 in 2020.
Features Segway-Ninebot E-Scooter E22D
The SEGWAY-NINEBOT E22D could effortlessly manage gradients of up to 15% and reached a maximum speed of 20 km/h, with a range of around 22 km. Weighing just 13.5 kilograms, the E-Scooter was a real lightweight and could be folded up quickly and easily. The 9-inch Tyres, filled with Foam, and the Shock Absorbers ensured a smooth ride, even on slightly uneven terrain. Reflectors and lights were integrated for safety, as were two brakes - an electronic regenerative brake at the front, operated by a red thumb lever on the Handlebar, and a manual foot brake at the rear. The throttle had a symbolic green marker.
The design of the SEGWAY-NINEBOT E22D was wireless, and all important information such as speed and battery status was shown on an LED display . Thanks to the Bluetooth interface, the scooter could be connected to the SEGWAY-NINEBOT App.
General Information
- Producer SEGWAY-NINEBOT
- Model E22 D
- Year of construction `20-
- Type 20 Km/h
- Dimension E-SCOOTER
- Vehicle type E-Scooter
Years of production & chassis numbers
-
Year of construction:
Technical data
- Length: 1160 mm
- Width: 430 mm
- Height: 1150 mm
- Product dimensions: L: 116 cm W: 43 cm H: 115 cm
- Engine type: 36 V / 300 W front-wheel drive
- Engine performance: 36 V / 300 W
- Rechargable battery size: LI-ION, 36 V 187 WH
- Charging time: 3 h
- Range (approx.): 22 km
- Speed: 20 km/h
- Climb incline: 15 %
- Acceleration: 3 driving modes (Eco, Standard, Sport)
- IP rating: IPX4
- max. carrying capacity: 100 kg
- Product weight: 13.5 kg
- Wheels: 9 inch foam-filled, puncture-proof
- Suspension: none
- Brakes: Electronic & regenerative brake (front); foot brake
- Chassis material: Aluminium
- Foldable: yes
- Display: LED colour display
- Turn indicators: no
- Front light: LED
- Back light: LED
- Signal: Bell
- Suitable age: 14
Further technical details / features
-
Info:
App connectivity
Bluetooth
Front, side E-MARK reflectors and rear Z-MARK reflectors
Holder for insurance licence plates
