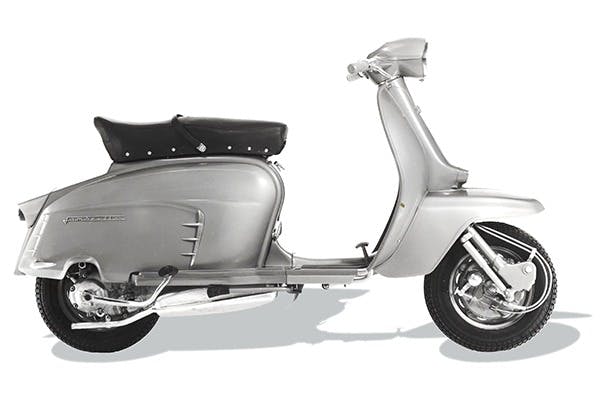

LAMBRETTA TV 200 Series 3 200 cc 2T AC 1963-1965 TV3
Overview Lambretta TV 200 Series 3
It was the displacement-obsessed Brits who finally brought the Lambretta TV 200 into production. Peter Agg, managing director of Lambretta Concessionaires Ltd. in the UK, went to Innocenti to ask for a larger engine, which was needed for more top speed. He was turned away as he was told that they did not make larger engines and that if the British wanted larger machines, they should buy motorbikes. But Peter Agg persisted, and eventually Innocenti decided that the British could have the larger displacement, but the concessionaires would have to take over the warranty as Innocenti did not approve the model.
Lambretta TV 200 Series 3 model history
Unexpectedly high speeds and impressive acceleration figures motivated the marketing department to advertise the TV as a "Gran Turismo" - a symbol for sporty vehicles of the time. Gradually, TV 200s also found their way to France, Switzerland, the USA and Scandinavia. With 10.75 hp , they reached speeds of up to 112 km/h, but only under optimal conditions. The Engine occasionally had difficulties in fully utilising the very long ratio fourth gear.
The Engine of the Lambretta TV 200 Series 3
It is not yet entirely clear whether the first TV 200 models were simply 175cc engines bored out to 198 cc, or whether a 200 Casing was installed from the outset. However, as soon as the TV 200 had a large Crankcase, a Crankshaft with 107 mm Conrod and 66 mm Piston with corresponding piston was installed. A longer gearbox will be fitted. The Cylinder has a very deep intake. The exhaust port is initially relatively low, but very wide. As this layout occasionally leads to problems with the rings, a Cylinder with a higher and narrower exhaust is inserted. One problem with the TV 200 is the strong vibrations, which repeatedly lead to problems with the exhaust bracket.
Situation on the used Lambretta TV 200 Series 3 market
Where do you look for this vehicle?
At your trusted Lambretta dealer
Classified adverts in the local newspaper
Markets and trade fairs such as Mostra Scambis in Italy
Online marketplaces such as www.mobile.de, www.autoscout24.de etc.
The colours of the Lambretta TV 200 Series 3:
Colour | Colour name | Colour code | Colour info |
|---|---|---|---|
 | Bianco Nuovo | 8059 | also UK |
 | Azzurro Metalizzato | 8062 | |
 | Blu | UK | |
 | Rosso | UK | |
 | Verde | UK | |
 | Oro | UK | |
 | Nero | UK |
General Information
- Producer LAMBRETTA
- Model TV 200 Serie 3
- Displacement 200 ccm
- Cycles and cooling 2T / AC
- Year of construction 1963-1965
- Type TV3
- Chassis number (from/to) 512000->
- Built quantity 14982
- Dimension LAMBRETTA
- Vehicle type Lambretta Serie 3
Years of production & chassis numbers
-
Year of construction:
Technical data
- Chassis type: open centre tube steel frame
- Chassis number position: Centre tube Frame under Cover
- Length: 1800 mm
- Width: 700 mm
- Height: 1030 mm
- Wheelbase: 1290 mm
- Ground clearance: 165 mm
- Weight (empty): 110 kg
- Turning circle: 3300 mm
- Performance (PS): 10.75 PS
- Performance (kW): 7.9 kW
- at rpm: 5700
- Top speed: 112 km/h
- Engine type: 2-stroke internal combustion engine
- Engine manufacturer: Innocenti
- Engine number: 175TV3
- position of engine number: right-hand side Engine in the area of the switching scale
Engine - cylinders, clutch & exhaust
- Displacement: 198 ccm
- Bore: 62 mm
- Stroke: 58 mm
- Number of cylinders: 1
- Transfer ports: 2
- Type of cooling: Air
- Compression: 8,0:1
- Starter: Kickstarter
- Clutch: Multi-disc clutch in oil bath on Input Shaft
- Clutch type: Ø 120 mm, 4 Clutch Friction Plates, 5 Springs
Engine - Carburetor
- Mixture preparation: Carburetor
- Type of carburetor: Dell'Orto SH 1/20
- Main jet: 108
- Mixing tube: 5899-2
- Idle jet: 48
- Choke jet: 50
Engine - Transmission
- Type of gearbox: Manual gearstick
- Number of gears: 4
- Gear rotation: 1st gear: 13:47 Z (3,62)
- Gear rotation: 2nd gear: 15:39 Z (2,60)
- Transmission: 3rd gear: 19:36 Z (1,89)
- Transmission: 4th gear: 22:32 Z (1,45)
- Gear rotation: Total: im 4. Gang: 4,46
- Transmission: Primary: 15:46 (3,07)
Engine - Ignition
- Ignition type: Interruptor ignition
- Ignition timing: 22 °
- Battery voltage: 6 V
- Charging power (ignition): 30 W
- Spark plug type: NGK B8ES / Bosch W4CC
- Spark plug thread: long thread
Chassis - tires and rims
- Front tyre(s): 3.50x10
- Front rim(s): 2.10x10
- Rear tyre(s): 3.50x10
- Rear rim(s): 2.10x10
- Front tyre pressure: 1,2
- Rear tyre pressure: 2,0
Chassis - Brakes
- Front brake: Disc Brake 169 mm
- Front brake operation: mechanical with Cable
- Rear brake: Ø inside 152 mm lining width: 25 mm
- Rear brake operation: mechanical with Cable
Chassis - steering column & swing arm
- Front wheel guide: drawn short swing arm
- Rear wheel guide: Drive set swing arm
- Front suspension: 220 mm internal Springs; external Shock Absorbers
- Rear suspension: Shock Absorber L 305 mm, integrated Springs
Electronics
- Battery: 6V 8Ah
- Alternator: 6V 80W, swing light magneto ignition
- Headlights: 6V 25/25W BA20d
- Parking light: 6V 5W Festoon Bulb
- Speedometer light: 6V 3W BA9s
- Taillights: 6V 3W BAY15d
- Brake lights: 6V 15W BAY15d
- Horn: 6V AC
Operating materials
- Fuel tank capacity: 8.6 l
- Included reserve: 0.8 l
- Mixing ratio: 1:50
- Range (approx.): 350 km
- Gearbox oil: SAE 80
- Amount of gearbox oil: 0.7 l
- Fuel consumption: 2.3 l/100km
