LAMBRETTA
LI 150 Serie 2 150 ccm 2T AC 1959-1961 150LI

LAMBRETTA LI 150 Series 2 150 cc 2T AC 1959-1961 150LI

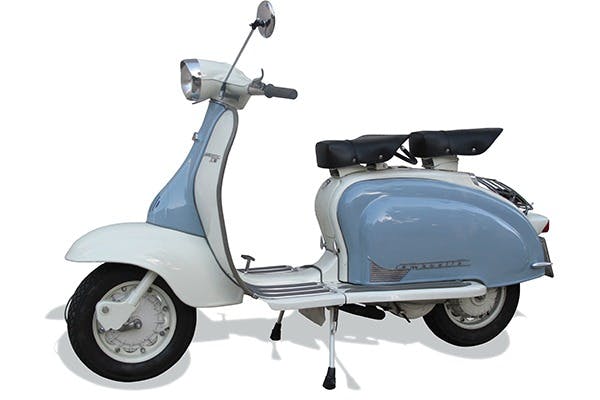

Photo from LAMBRETTA LI 150 Series 2 150 cc 2T AC 1959-1961 150LI | LAMBRETTA

Overview Lambretta LI 125 & 150 Series 2

In October 1959, the Lambretta LI Series 2 was launched, accompanied by advertising slogans based on the proverbial "Lambrettability". This paved the way for Innocenti's next great commercial success, with the Series 2 becoming one of the best-selling models of all time with 270,000 units sold.

Model history Lambretta LI 125 & 150 Series 2

The most striking difference between the models is the integration of the Headlight Unit into the Handlebar. The Li 125 comes with a single seat as standard, unlike the Li 150, which also offers a seat for the passenger. Replacement Parts included both a rear Single Saddle and a double seat. A glance at the step-through also reveals differences in displacement: The Li 125 features aluminium rails with a waffle pattern, while the Li 150 has aluminium rails with grey rubber inserts and End Pieces for the Floor Runners.
Both the Rear Light and the horn grille underwent a change during the course of production; the Rear Light was made larger. The Rear Light Gasket remained white, and apart from the black Stand Feet and the Kickstart Lever Rubber, the rubber parts remained grey.

The Engine of the Lambretta LI 125 & 150 Series 2

A few fine adjustments were made to the Engine, including the installation of a longer Cylinder and matching Piston. In addition, all models are equipped with an Air Intakes for the Carburettor, which was already used on the later Series 1 version.

Situation used market Lambretta LI 125 & 150 Series 2

Where do you look for this vehicle?

The colours of the Lambretta LI 125 & 150 Series 2:

Colour

Colour name

Colour code

Colour info

grigio-chiaro-8019

Grigio Chiaro

8019

Frame

grigio-fiume-8014

Grigio Fiume

8014

azzurro-flaminia-8032-2

Azzurro Flaminia

8032

bleu-inghilterra-8031

Bleu Inghilterra

8031

verde-nilo-8015

Verde Nilo

8015

Rosso Rubino

8047

rosso-corallo-8046

Rosso Corallo

8046

General Information

  • Producer LAMBRETTA
  • Model LI 150 Serie 2
  • Displacement 150 ccm
  • Cycles and cooling 2T / AC
  • Year of construction 1959-1961
  • Type 150LI
  • Chassis number (from/to) 800001-&gt
  • Built quantity 165839
  • Dimension LAMBRETTA
  • Vehicle type Lambretta Serie 1/2

Years of production & chassis numbers

  • Year of construction:

Technical data

  • Chassis type: open centre tube steel frame
  • Chassis number position: Centre tube Frame under Cover
  • Length: 1825 mm
  • Width: 710 mm
  • Height: 1060 mm
  • Seat height: 785 mm
  • Wheelbase: 1290 mm
  • Ground clearance: 165 mm
  • Weight (empty): 105 kg
  • perm. total weight: 258 kg
  • Performance (PS): 6.67 PS
  • Performance (kW): 4.91 kW
  • at rpm: 5200
  • Top speed: 83 km/h
  • Engine type: 2-stroke internal combustion engine
  • Engine manufacturer: Innocenti
  • Engine number: 150LI
  • position of engine number: right-hand side Engine in the area of the switching scale

Engine - cylinders, clutch & exhaust

  • Displacement: 148 ccm
  • Bore: 57 mm
  • Stroke: 58 mm
  • Number of cylinders: 1
  • Transfer ports: 2
  • Type of cooling: Air
  • Compression: 7:1
  • Starter: Kickstarter
  • Clutch: Multi-disc clutch in oil bath on Input Shaft
  • Clutch type: Ø 120 mm, 4 Clutch Friction Plates, 5 Springs

Engine - Carburetor

  • Mixture preparation: Carburetor
  • Type of carburetor: Dell'Orto MA 19 - BS 5
  • Main jet: 102
  • Mixing tube: 260 B
  • Idle jet: 40
  • Choke jet: 50

Engine - Transmission

  • Type of gearbox: Manual gearstick
  • Number of gears: 4
  • Gear rotation: 1st gear: 11:50 Z (4,55)
  • Gear rotation: 2nd gear: 14:41 Z (2,93)
  • Transmission: 3rd gear: 17:37 Z (2,18)
  • Transmission: 4th gear: 20:34 Z (1,70)
  • Gear rotation: Total: im 4. Gang: 5,22
  • Transmission: Primary: 15:46 Z (3,07)

Engine - Ignition

  • Ignition type: Interruptor ignition
  • Ignition timing: 23 °
  • Battery voltage: 6 V
  • Charging power (ignition): 30 W
  • Spark plug type: NGK B7ES Bosch W5CC
  • Spark plug thread: long thread

Chassis - tires and rims

  • Front tyre(s): 3.50x10
  • Front rim(s): 2.10x10
  • Rear tyre(s): 3.50x10
  • Rear rim(s): 2.10x10
  • Front tyre pressure: 1,2
  • Rear tyre pressure: 2,0-2,4

Chassis - Brakes

  • Brake system: Drum Brake
  • Front brake: Ø inside 150 mm lining width: 25 mm
  • Front brake operation: mechanical with Cable
  • Rear brake: Ø inside 150 mm lining width: 25 mm
  • Rear brake operation: mechanical with Cable

Chassis - steering column & swing arm

  • Front wheel guide: drawn short swing arm
  • Rear wheel guide: Drive set swing arm
  • Front suspension: Springs inside
  • Rear suspension: Shock Absorber L 305 mm, integrated Springs

Electronics

  • Alternator: 6V 27W, swing light magneto ignition
  • Headlights: 6V 25/25W BA20d
  • Parking light: 6V 5W Festoon Bulb
  • Speedometer light: 6V 2.5W
  • Taillights: 6V 3W BAY15d
  • Brake lights: 6V 15W BAY15d
  • Horn: 6V AC

Operating materials

  • Fuel tank capacity: 8 l
  • Included reserve: 0.75 l
  • Range (approx.): 386 km
  • Gearbox oil: SAE 80
  • Amount of gearbox oil: 0.7 l
  • Fuel consumption: 2.2 l/100km

Explosion for this vehicle type

Spare parts exploded views

Spare parts exploded views

Our online exploded views for scooters make it much easier for you to find the right part. Each item is assigned exactly to the corresponding vehicle, with year of manufacture and chassis number. From our Expo lists, you can navigate directly to the spare parts, where a photo and a description are then available for almost every part. Conversely, you can also navigate from the item detail to the corresponding exploded view.
