IO HAWK LEGEND '20- 20 km/h

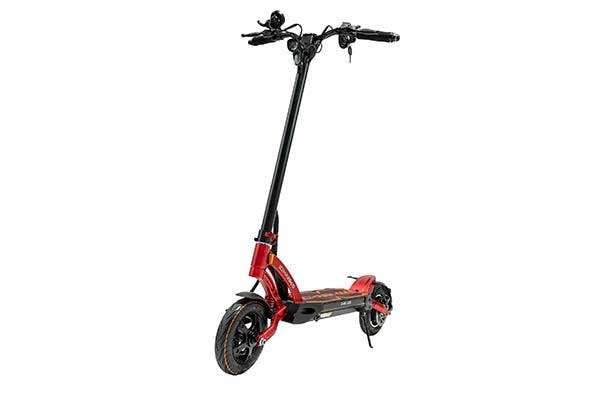

Overview e-scooter IO HAWK LEGEND

The IO HAWK Legend was a high-quality e-scooter that could be used both on and off-road. In cooperation with the manufacturer Kaabo, IO HAWK developed an e-scooter that was unrivalled on the German market.

Features of the IO HAWK LEGEND E-Scooter

The first question that arose with the IO HAWK Legend was: What exactly does "recuperation" mean? The Battery recharges itself during regenerative braking, downhill driving and coasting, which increases the Battery's running time. This innovation in E-Scooters increased the range of the IO HAWK Legend to around 70 kilometres. With its motor power of 500 watts, the IO HAWK Legend was not only able to master inclines with ease, but was also particularly suitable for off-road use in the Cross version.
But of course that wasn't all the IO HAWK Legend had to offer. The air-filled 10-inch Tyres combined with the full front and rear suspension ensured perfect rolling on any terrain. Tree roots, potholes and kerbs were no longer an obstacle. The IO HAWK Legend came with an optional Indicator system from German premium manufacturer Kellermann, which IO HAWK described as "the brightest legal indicators in Europe". A brake light was also integrated into the Rear Light, which ensured additional safety and attention in road traffic. These positive effects were reinforced by a Bell and Horn. With its two Disc Brakes, the IO HAWK Legend was ideally equipped for lively city traffic. An Ignition Lock was included in the scope of delivery so that the first Anti-Theft Device was guaranteed.
The IO HAWK Legend could be quickly folded up and stowed away in the boot. The colour display on the Handlebar had a USB connection so that even a smartphone could be charged while riding. It also showed the speed, battery status and much more information. There were two different Tyres for the IO HAWK Legend: off-road (cross) for off-road rides and wide road tyres with even more grip and smooth handling. All tyres were legally approved for road use.

General Information

Producer IO HAWK
Model LEGEND
Year of construction `20-
Type 20 km/h
Dimension E-SCOOTER
Vehicle type E-Scooter

Years of production & chassis numbers

Year of construction:

Technical data

Length: 1260 mm
Width: 560 mm
Height: 1230 mm
Footboard width: 560 mm
Engine type: 48 V rear-wheel drive
Engine performance: 500 W
Rechargable battery size: 18,2
Charging time: 5 h
Range (approx.): 85 km
Speed: 20 km/h
max. carrying capacity: 120 kg
Product weight: 24.3 kg
Wheels: 10 inch pneumatic tyres
Brakes: two mechanical Disc Brakes
Chassis material: Aluminium
Foldable: yes
Display: LCD Display
Turn indicators: yes
Front light: LED
Back light: LED with brake light function
Suitable age: from 14 years

Explosion for this vehicle type

Our online exploded views for scooters make it much easier for you to find the right part. Each item is assigned exactly to the corresponding vehicle, with year of manufacture and chassis number. From our Expo lists, you can navigate directly to the spare parts, where a photo and a description are then available for almost every part. Conversely, you can also navigate from the item detail to the corresponding exploded view.
